JASPER— WOODWORKING MACHINERY —
Model: 1325A
1325A CNC Drilling, Milling and Cutting Machine

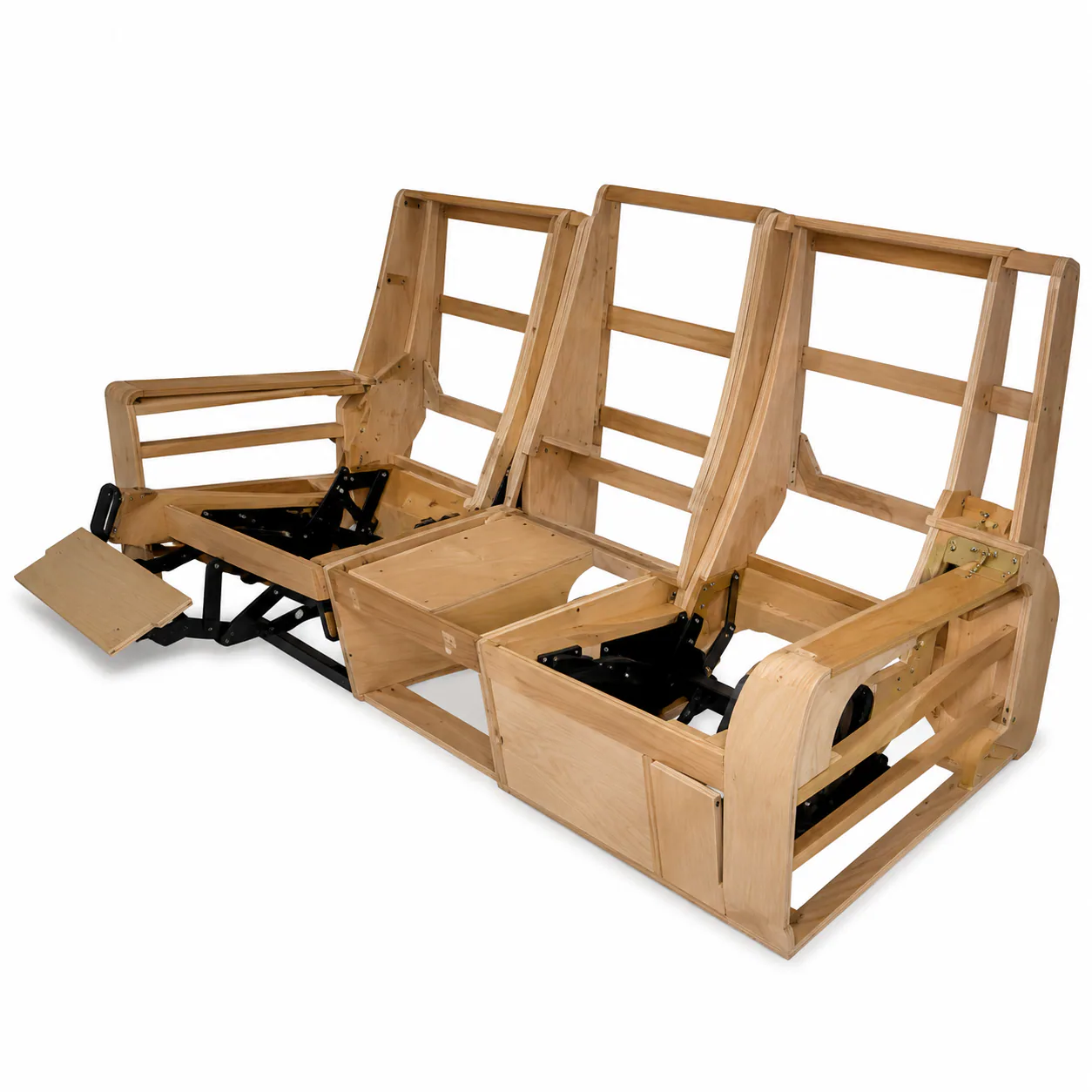

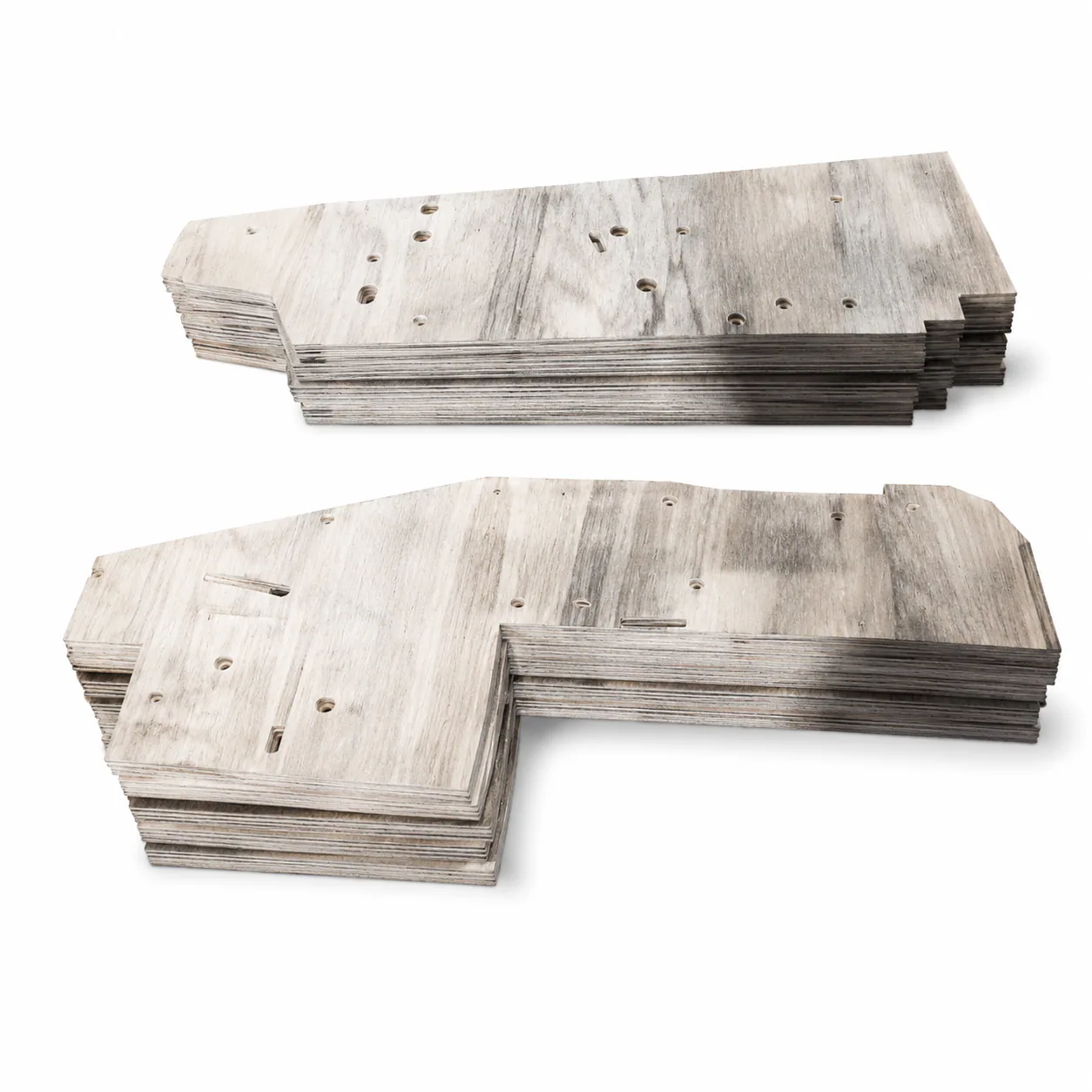

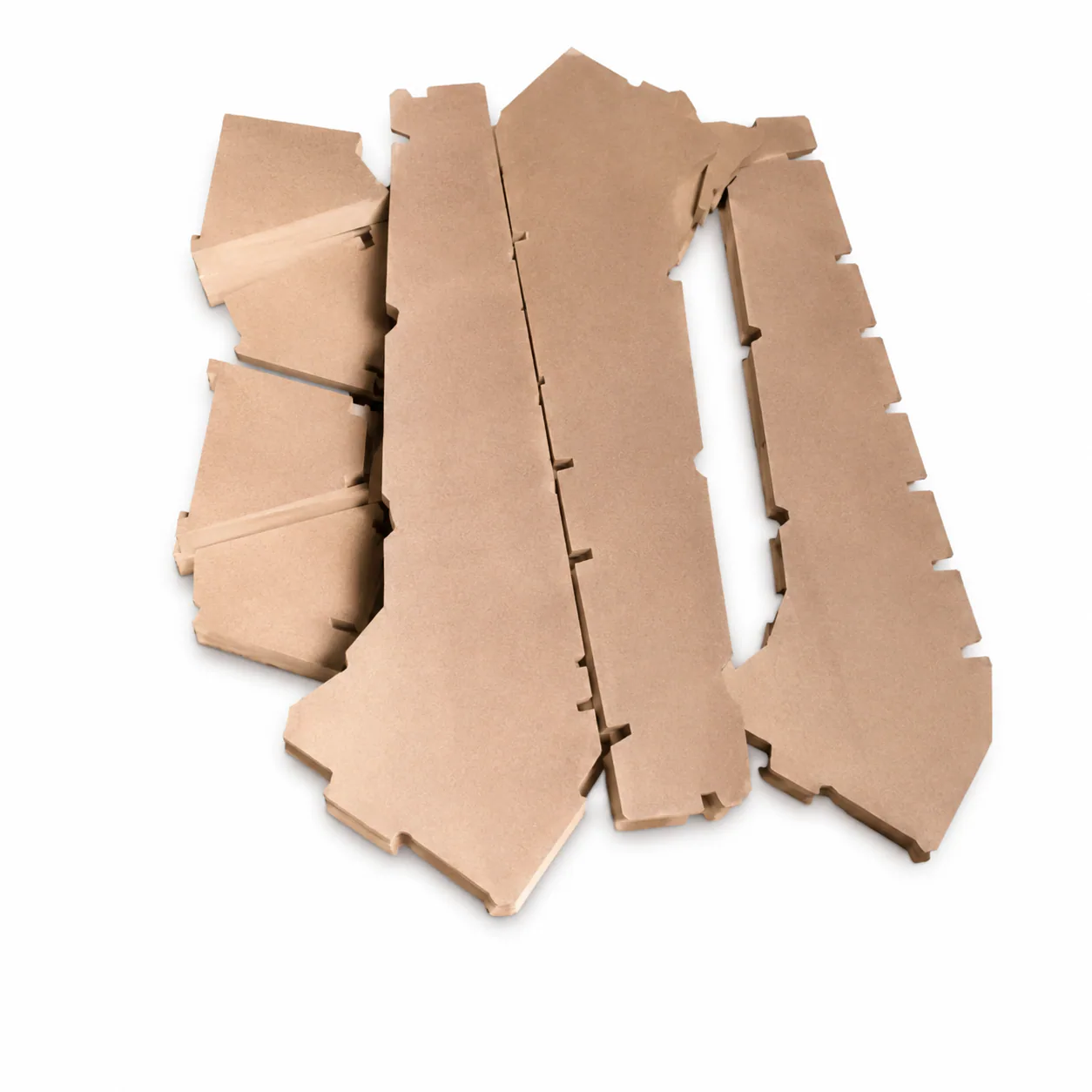

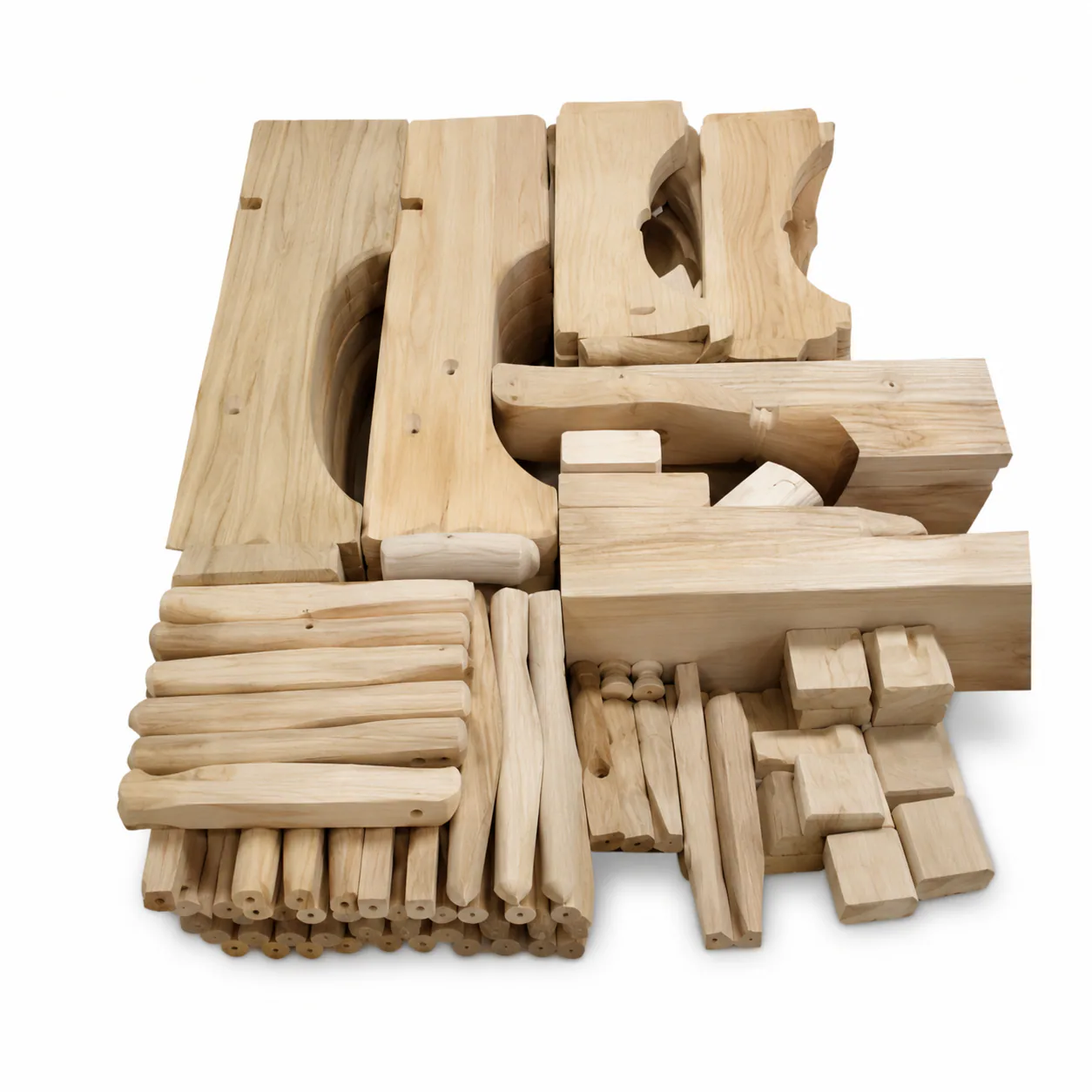

The JASPER 1325A CNC Drilling, Milling and Cutting Machine is designed for efficient drilling, milling, and cutting of upholstered furniture parts, solid wood components, and panel-based materials. It can process both traditional straight-edged parts and special-shaped workpieces with complex contours.
| Model | 1325A |
| Max Processing Length | 2500 mm |
| Max Processing Width | 1220 mm |
| Max Processing Thickness | 0–130 mm |
| Cutting / Drilling Spindle Power | 18 / 9 kW |
| Spindle Speed | 10000–18000 rpm |
| Total Power | 30 kW |
| Voltage / Air Pressure | 380 V / 0.6 MPa |
Configuration
| Machine Structure & Control System | Electrical & Motion Components |
|---|---|
| Welded and stress-relieved machine body | Germany ROUST guide rail |

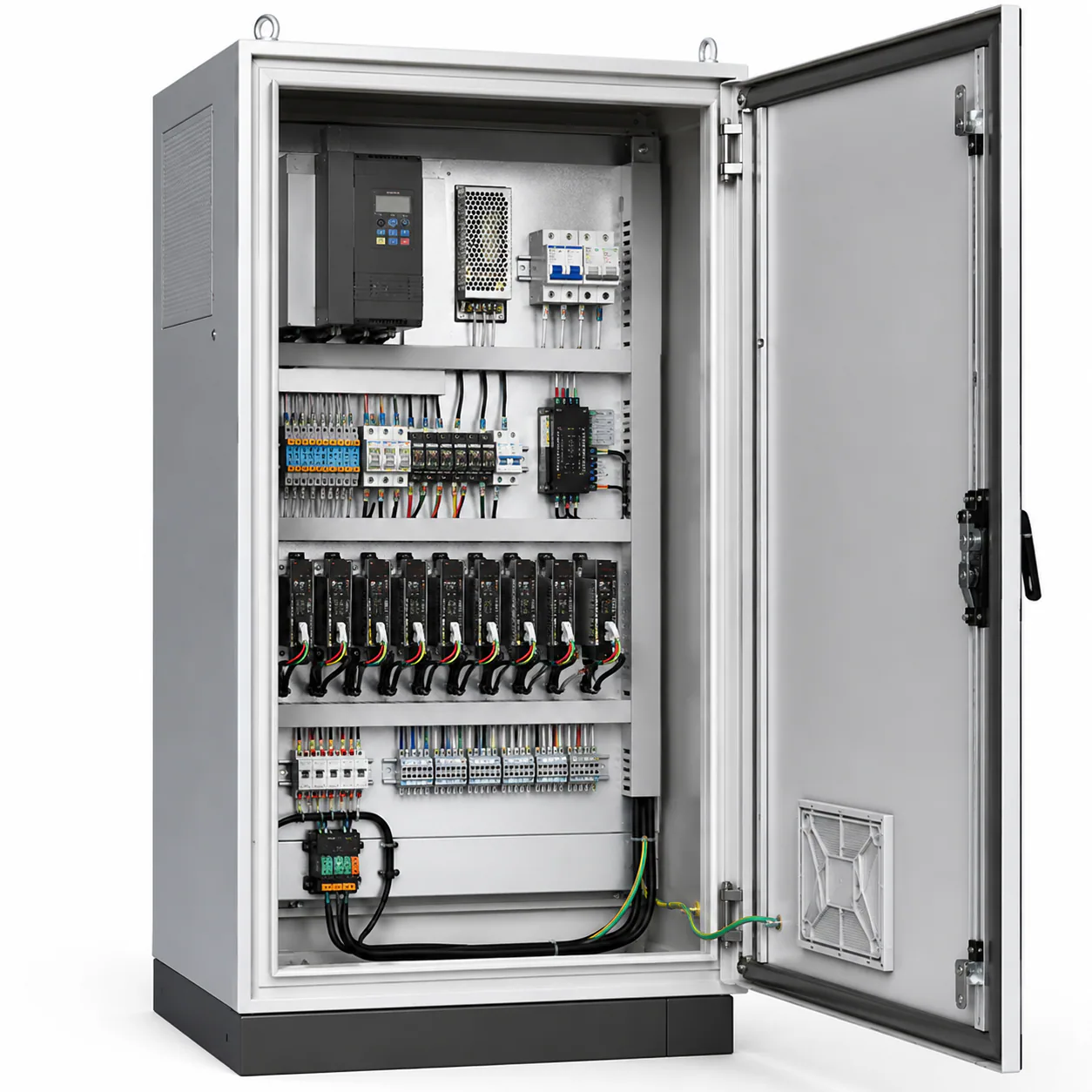

| Customized control system | Schneider electric components |
| Inovance servo drive | Fuling frequency inverter |

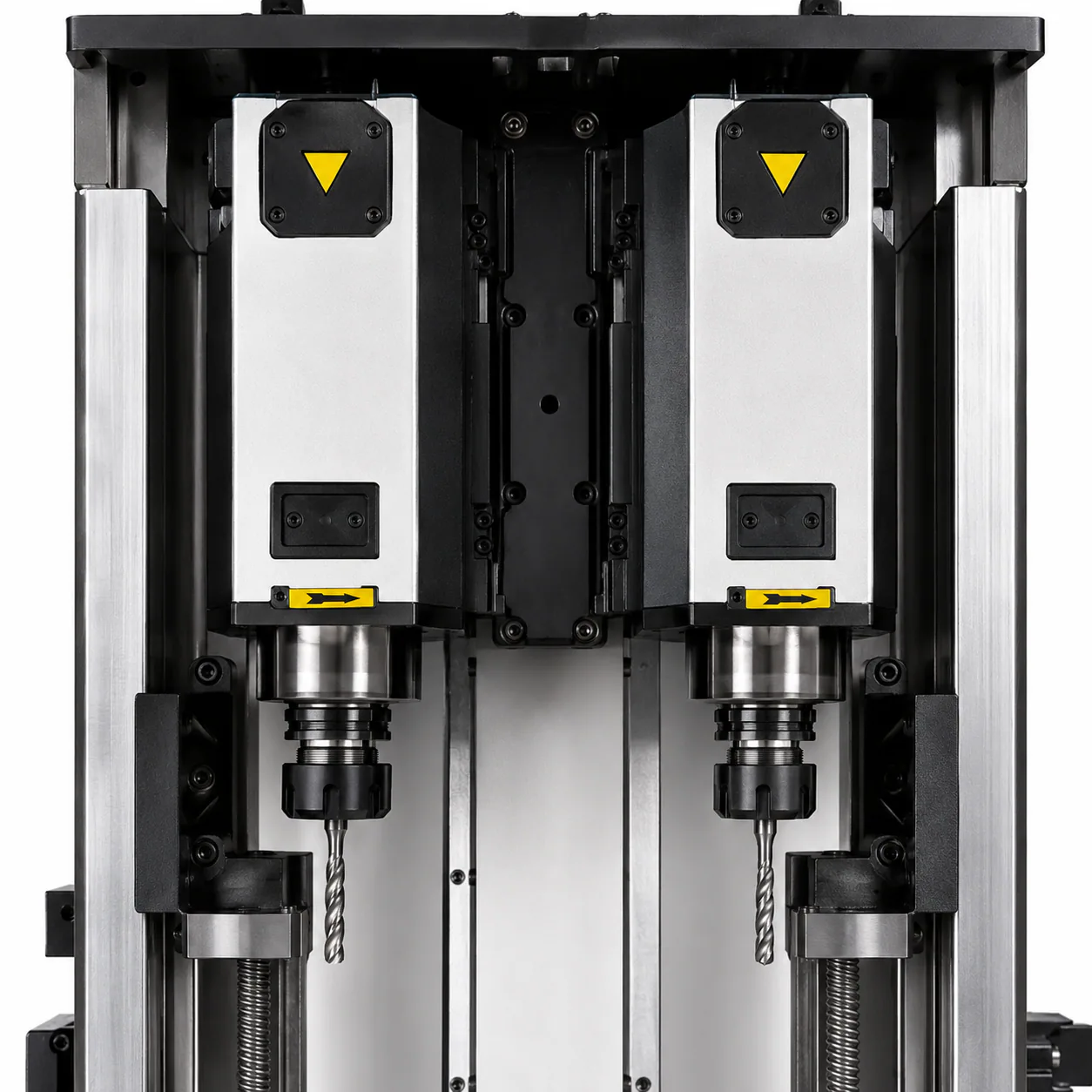

| Taiwan ball screw | Machining center tool changing spindle (upper and lower spindles) |
Technical Parameters
| Item | 1325A |
|---|---|
| Model | 1325A |
| Equipment dimensions (L × W × H) | 5500 × 3850 × 2800 mm |
| Total weight of equipment | 5500 kg |
| Milling cutter diameter | 8 mm |
| Maximum processing material length | 2500 mm |
| Maximum processing material width | 1220 mm |
| Maximum processing material thickness | 0–130 mm |
| Cutting speed | 0–30 m/min |
| Drilling speed | 0–20 m/min |
| Borehole travel speed | 0–60 m/min |
| Drilling processing speed | 0–30 m/min |
| Total power of equipment | 30 kW |
| Cutting spindle power | 18 kW |
| Drilling spindle power | 9 kW |
| Spindle speed | 10000–18000 rpm |
| Working voltage | 380 V |
| Working pressure | 0.6 MPa |
Tool Parameters
| Overall Tool Length (mm) | Cutting Edge Length (mm) | Tool Diameter (mm) | Max Cutting Thickness (mm) |
|---|---|---|---|
| 220 | 130 | Φ8 | 0–130 |
Application & Selection Guidance
| Question | Direct Answer |
|---|---|
| What is it for? | A CNC machine for drilling, milling and cutting upholstered furniture parts, solid wood components and panel-based materials, including straight-edged and special-shaped workpieces. |
| Best for | Furniture manufacturers that need these three operations on workpieces within the published 2500 × 1220 mm processing area and 0–130 mm thickness range. |
| Not ideal for | Workpieces outside the published maximum length, width or thickness range. |
| How to select | Match the part envelope and required drilling, milling and cutting operations to the listed processing range before requesting a configuration. |
FAQ
Common Questions
What operations can the 1325A perform?
The 1325A is specified for drilling, milling and cutting furniture parts, solid wood components and panel-based materials.
What workpiece size can the 1325A process?
The published maximum processing length is 2500 mm, maximum width is 1220 mm, and thickness range is 0–130 mm.
Can it process special-shaped furniture parts?
Yes. The product page lists special-shaped workpieces with complex contours alongside traditional straight-edged parts.
What should be checked before selecting this model?
Check that the part size and required drilling, milling and cutting operations fit the published processing range.
