Models: 1500A / 2500A
CNC Solid Wood Cutting Machine
Quick answer: The JASPER CNC Solid Wood Cutting Machine is for high-precision cutting of solid wood components and special-shaped furniture parts. With automatic positioning and stable clamping, it is suited to chair, sofa, bed, table, musical-instrument, curved, and customized solid wood components.
| Available Models | 1500A / 2500A |
| Max Processing Length | 1500 / 2500 mm |
| Max Processing Width | 1300 mm |
| Max Processing Thickness | 0–130 mm |
| Spindle Power | 12.7 kW |
| Spindle Speed | 10000–18000 rpm |
| Total Power | 20 kW |
| Voltage / Air Pressure | 380 V / 0.6 MPa |
Configuration
| Machine Structure | Electrical & Motion Components |
|---|---|
| Welded and stress-relieved machine body | Germany ROUST guide rail |
| Customized control system | Schneider electric components |
| Inovance servo drive | Fuling frequency inverter |
| Imported ball screws from Taiwan | Customized high-speed spindle, dual spindles |
Technical Parameters
| Parameter | 1500A | 2500A |
|---|---|---|
| Machine Dimensions, L × W × H | 2300 × 2800 × 1600 mm | 3500 × 2800 × 1600 mm |
| Total Weight | 2000 kg | 3000 kg |
| Max Processing Length | 1500 mm | 2500 mm |
| Max Processing Width | 1300 mm | 1300 mm |
| Max Processing Thickness | 0–130 mm | 0–130 mm |
| X Axis Speed | 0–15 m/min | 0–15 m/min |
| Y Axis Speed | 0–12 m/min | 0–12 m/min |
| Total Power | 20 kW | 20 kW |
| Spindle Power | 12.7 kW | 12.7 kW |
| Spindle Speed | 10000–18000 rpm | 10000–18000 rpm |
| Voltage | 380 V | 380 V |
| Air Pressure | 0.6 MPa | 0.6 MPa |
Tool Parameters
| Overall Tool Length | Cutting Edge Length | Tool Diameter | Max Cutting Thickness |
|---|---|---|---|
| 120 mm | 60 mm | Φ4 | 0–60 mm |
| 150 mm | 80 mm | Φ5 | 0–80 mm |
| 150 mm | 80 mm | Φ6 | 0–80 mm |
| 200 mm | 130 mm | Φ8 | 0–130 mm |
FAQ
Common Questions
What workpieces is this CNC solid wood cutting machine best for?

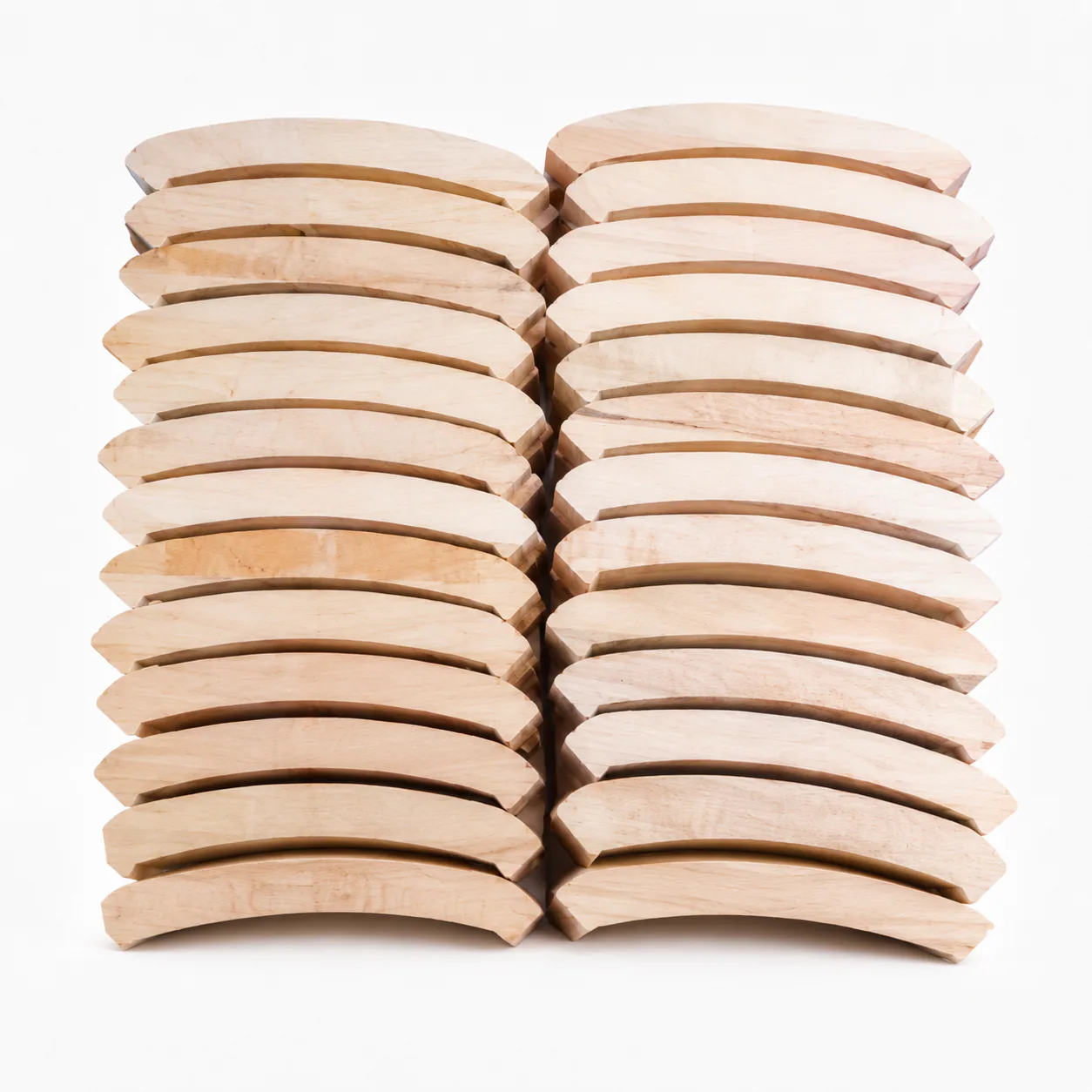

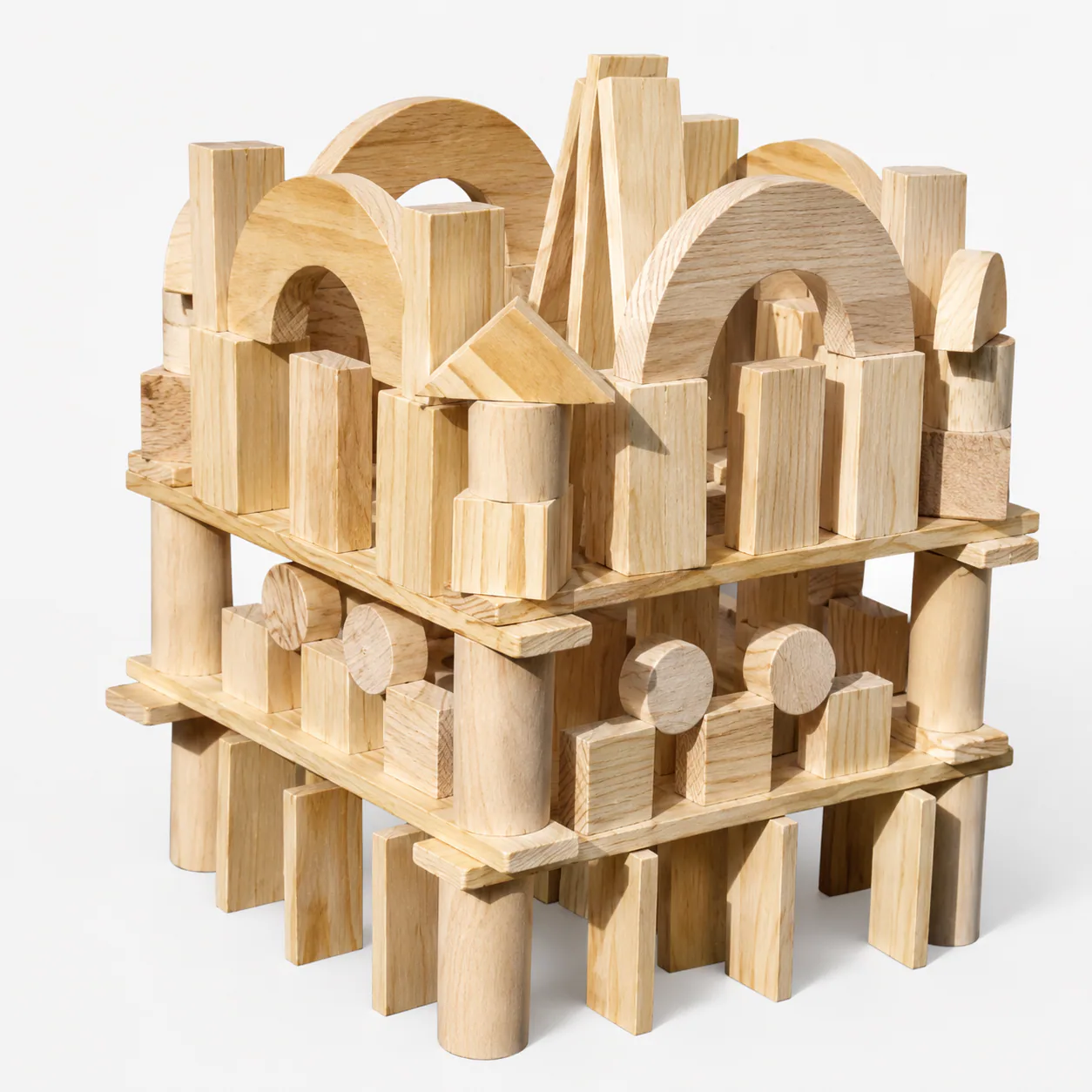

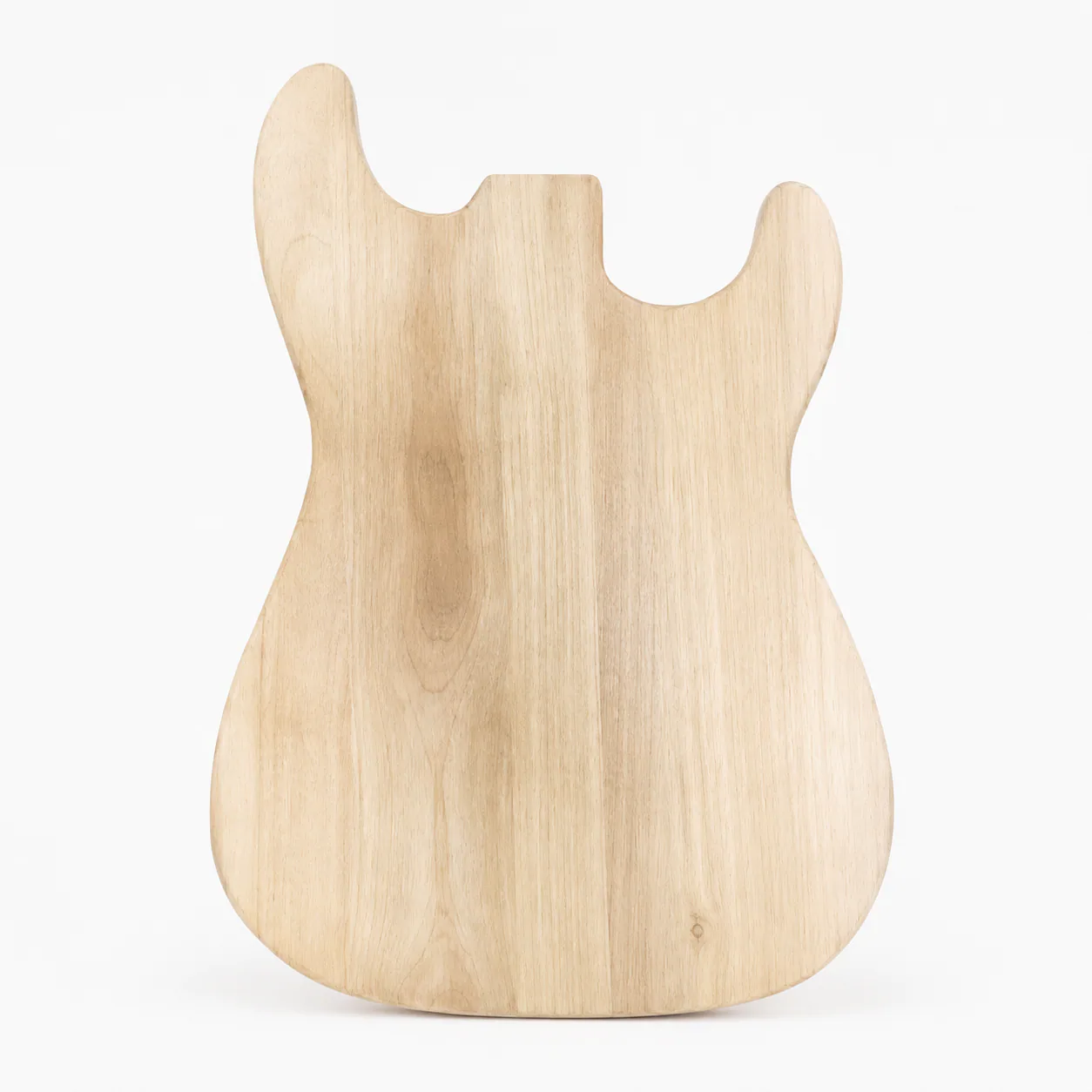

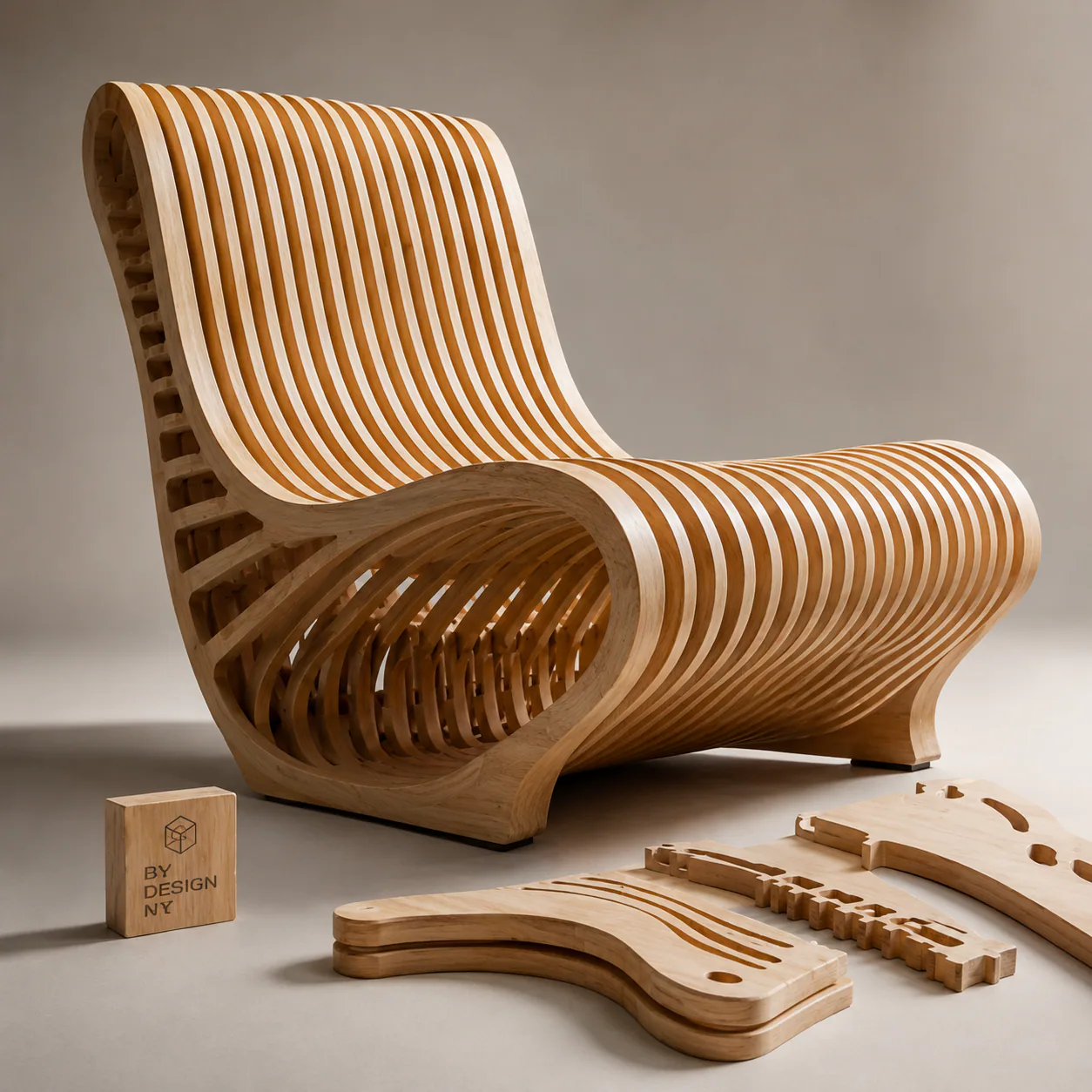

It is best for solid wood furniture components and special-shaped parts, including chair, sofa, bed, table, curved, musical-instrument, and customized components.
What processing range should be checked before selecting a model?
Confirm the workpiece length, width, and thickness against the listed limits: up to 1500 or 2500 mm in length, 1300 mm in width, and 130 mm in thickness.
How do I choose between the 1500A and 2500A?
Choose according to required processing length: the 1500A is listed for up to 1500 mm and the 2500A for up to 2500 mm. Both list a 1300 mm maximum width and 130 mm maximum thickness.
When is this machine not the right fit?
It is not the right fit when required workpiece dimensions exceed the listed processing range. Confirm the part drawing and required cutting range before quotation.
What is the standard order lead time?
The listed lead time is 30–45 days. The exact timeline is confirmed with the order.
