JASPER— WOODWORKING MACHINERY —
Model: MD-1200D4
MD-1200D4 16-Head Milling and Drilling Machining Center
Quick answer: The JASPER MD-1200D4 is a 16-head milling and drilling machining center for profiling, grooving, drilling, and other complex processes in one setup. Its alternating double-station design supports higher-productivity processing of solid wood components.
| Model | MD-1200D4 |
| Processing Capacity | 1200 × 180 × 180 mm |
| Machining Heads | 16 milling/drilling heads |
| Working Mode | Alternating Double-Station Operation |
| Control System | Baoyuan |
| Programming | UG / CAM Programming |
| Total Power | 46 kW |
| Machine Weight | 5000 kg |
Standard Equipment
| Control & Working System | Processing System | Lubrication & Electrical System |
|---|---|---|
| CNC control system | 16 milling/drilling heads | Automatic lubrication system |
| Double-station working system | High-torque spindle motors | Electrical cabinet with standard components |
| Alarm light and safety protection | Precision linear guides |
Technical Parameters
| Specification | Detail |
|---|---|
| Model | MD-1200D4 |
| Max. Processing Length | 1200 mm |
| Max. Processing Width | 180 mm |
| Max. Processing Thickness | 180 mm |
| X Axis Servo Motor Power | 1.8 kW |
| Y1 Axis Servo Motor Power | 1.3 kW |
| Y2 Axis Servo Motor Power | 1.3 kW |
| Z Axis Servo Motor Power | 1.5 kW |
| C Axis Servo Motor Power | 0.85 kW |
| A1 Axis Servo Motor Power | 0.85 kW |
| A2 Axis Servo Motor Power | 0.85 kW |
| Spindle Motor | 5.5 kW × 4, ER32 + Φ25 mm / 3.7 kW × 4, ER25 |
| Spindle Wheelbase | 300 mm |
| Control System | Baoyuan |
| Programming | UG / CAM Programming |
| Total Power | 46 kW |
| Voltage | 380 V |
| Air Pressure | 0.8 MPa |
| Working Mode | Alternating Double-Station Operation |
| Machine Dimensions | 4100 × 2300 × 2050 mm |
| Machine Weight | 5000 kg |
FAQ
MD-1200D4 Selection Questions
What is the MD-1200D4 best for?

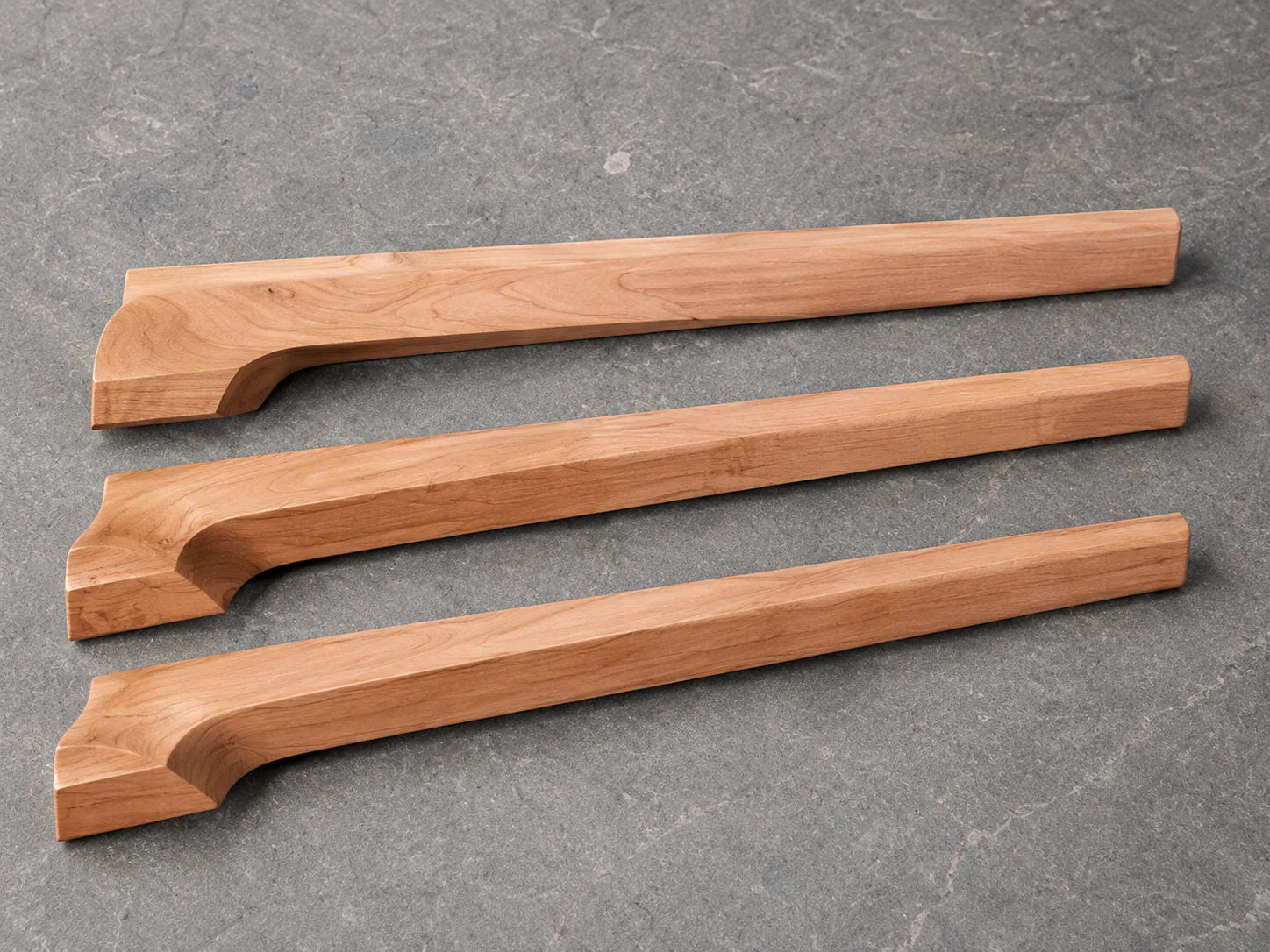

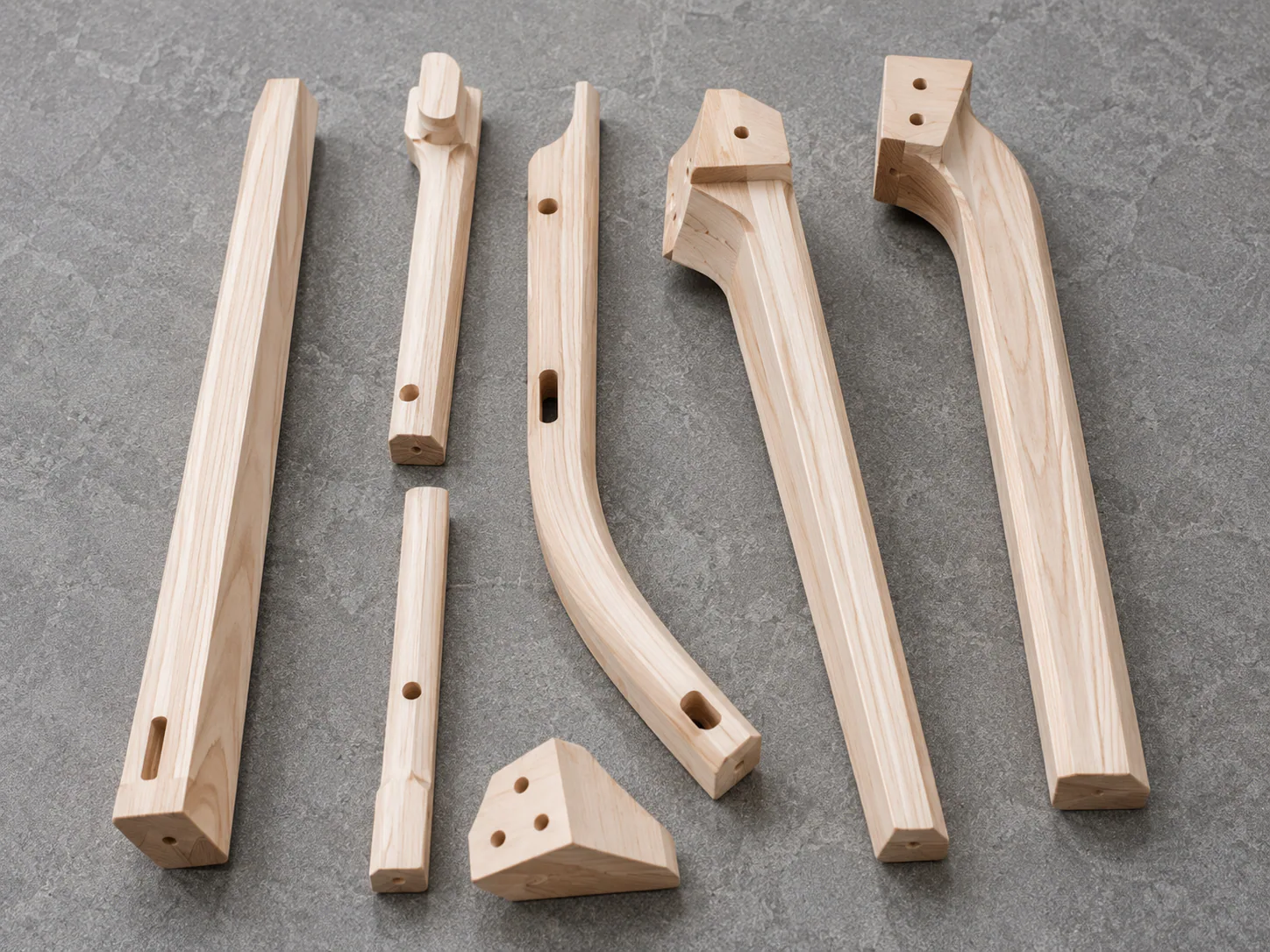

It is best for solid wood components requiring profiling, grooving, drilling, and related complex processes in one setup.
What workpiece range should be checked?
Check the part against the listed 1200 × 180 × 180 mm processing capacity before selection.
What production setup does this machining center use?

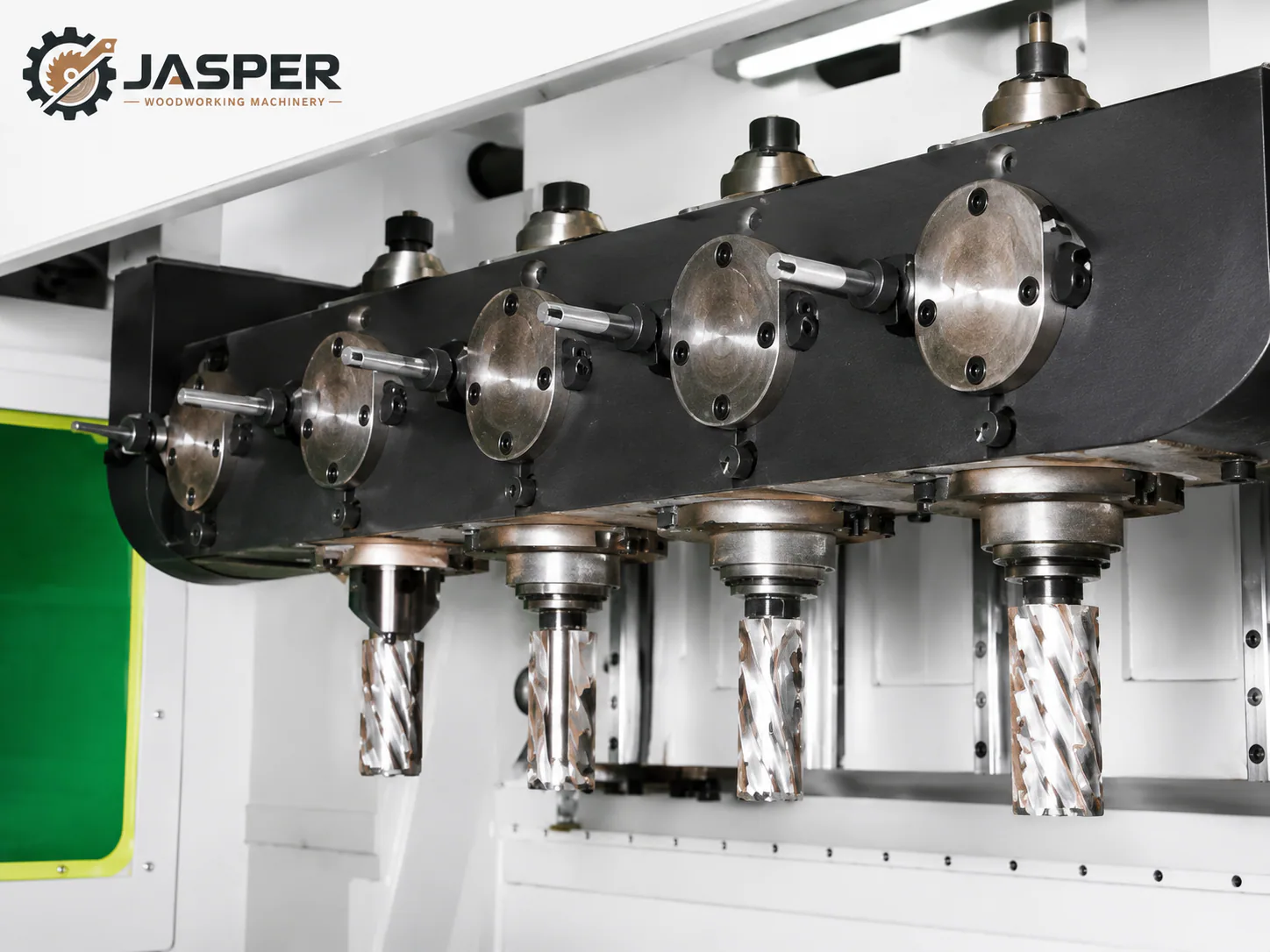

The MD-1200D4 has 16 milling and drilling heads and an alternating double-station working mode. It uses Baoyuan control and UG / CAM programming.
When is the MD-1200D4 not the right fit?
It is not the right fit when required workpiece dimensions exceed the listed 1200 × 180 × 180 mm capacity. Confirm the part drawing and required processes before quotation.
What is the standard order lead time?
The listed lead time is 30–45 days. The exact timeline is confirmed with the order.
