Model: MD-1200D8W
MD-1200D8W 32-Head Milling and Drilling Machining Center
Quick answer: The JASPER MD-1200D8W is for integrated profiling, grooving, and drilling of solid wood components. Its single-station system processes up to eight identical workpieces in one cycle for batch production.
| Model | MD-1200D8W |
| Processing Capacity | 1200 × 180 × 180 mm |

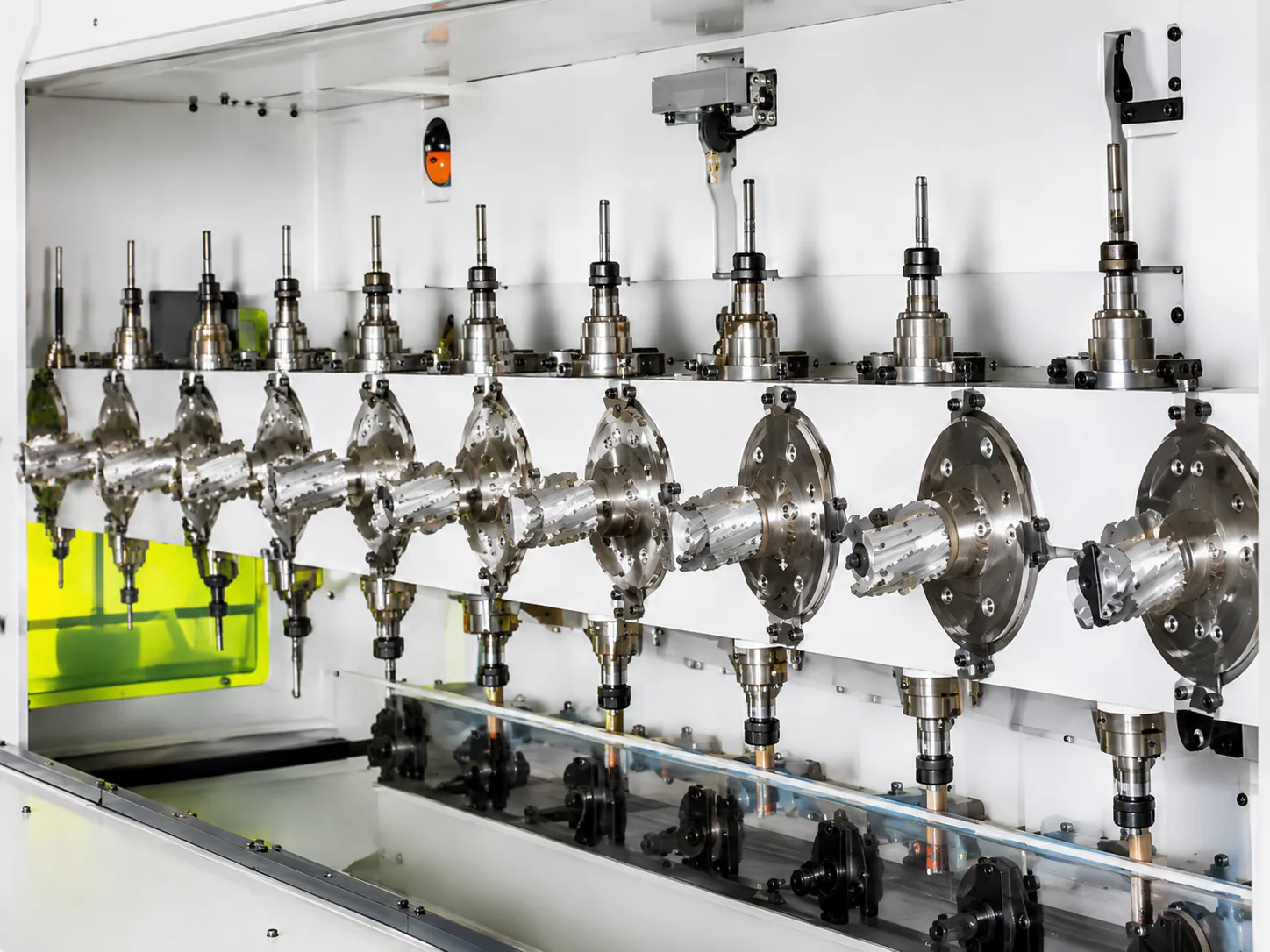

| Machining Heads | 32-head spindle group |
| Workpieces per Cycle | Up to 8 identical workpieces |
| Working Mode | Single Station |
| Control System | Baoyuan |
| Total Power | 83 kW |
| Machine Weight | 5000 kg |
Standard Equipment
| Control & Drive System | Machine Structure & Processing System |
|---|---|
| Advanced CNC control system | Heavy-duty welded machine frame |
| High-performance servo drive system | Stable linear guide and precision components |
| User-friendly control interface | Efficient workpiece processing structure |
Technical Parameters
| Specification | Detail |
|---|---|
| Model | MD-1200D8W |
| Maximum Processing Length | 1200 mm |
| Maximum Processing Width | 180 mm |
| Maximum Processing Thickness | 180 mm |
| X-Axis Servo Motor | 1.5 kW |
| Y1-Axis Servo Motor | 1.8 kW |
| Z-Axis Servo Motor | 1.8 kW |
| C-Axis Servo Motor | 1.5 kW |
| A1-Axis Servo Motor | 0.85 kW |
| Spindle Motor | 5.5 kW × 8, ER32 + Φ25 mm / 3.7 kW × 8, ER25 |
| Control System | Baoyuan |
| Programming | UG |
| Spindle Center Distance | 300 mm |
| Total Power | 83 kW |
| Voltage | 380 V |
| Air Pressure | 0.6 MPa |
| Working Mode | Single Station |
| Machine Dimensions | 3900 × 2300 × 2050 mm |
| Machine Weight | 5000 kg |
FAQ
MD-1200D8W Selection Questions
What is the MD-1200D8W best for?

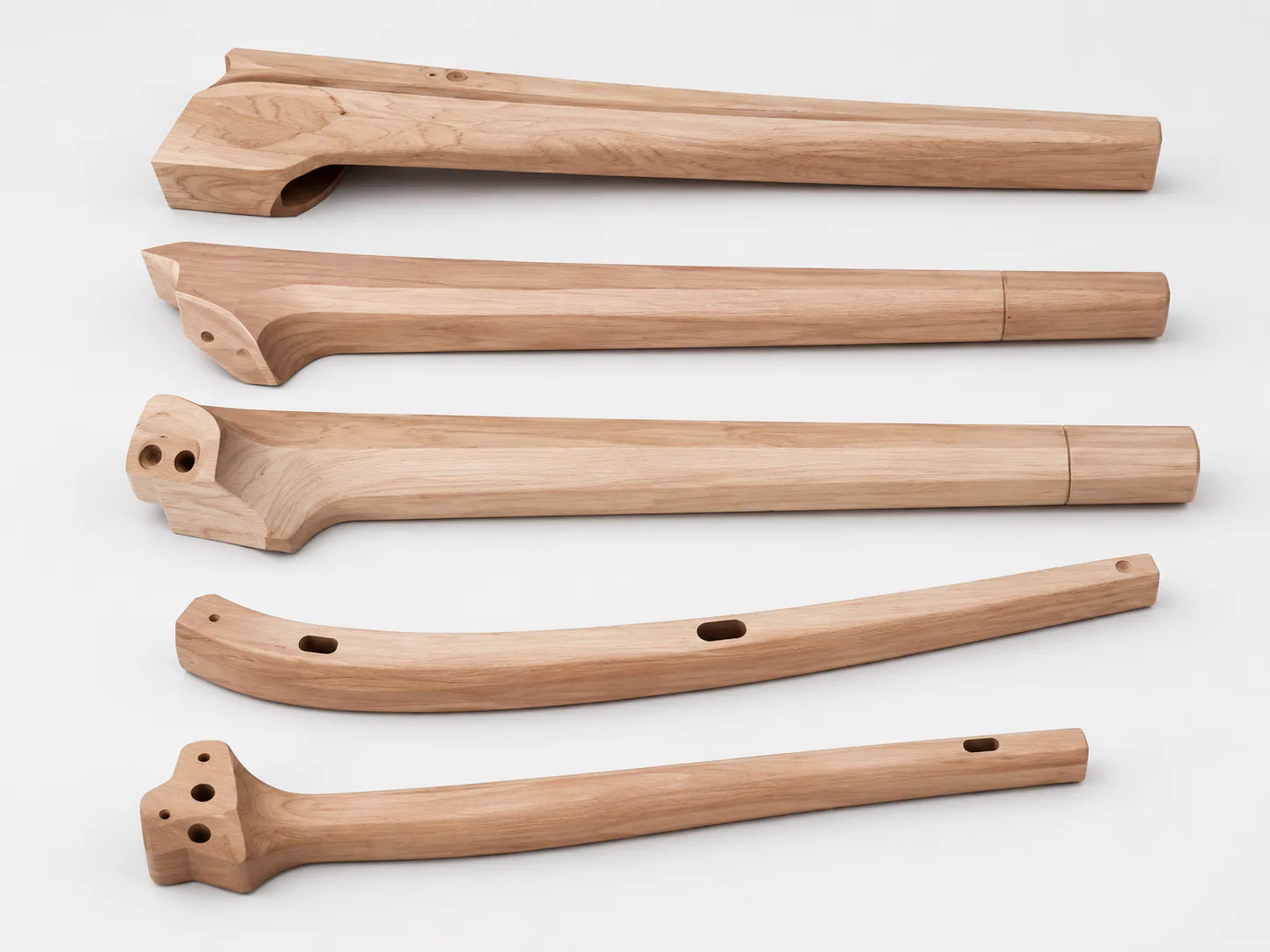

It is best for batch processing identical solid wood components that require profiling, grooving, and drilling.
How many workpieces can it process per cycle?
Its listed single-station system processes up to eight identical workpieces in one cycle.
What workpiece range should be checked?
Check the part against the listed 1200 × 180 × 180 mm processing capacity before selection.
When is the MD-1200D8W not the right fit?
It is not the right fit when workpieces are not identical for the batch or when required dimensions exceed the listed 1200 × 180 × 180 mm capacity.
What is the standard order lead time?
The listed lead time is 30–45 days. The exact timeline is confirmed with the order.
