JASPER— WOODWORKING MACHINERY —
Model: MD-2P-C
MD-2P-C Double-Sided Sanding Machine, Triangle

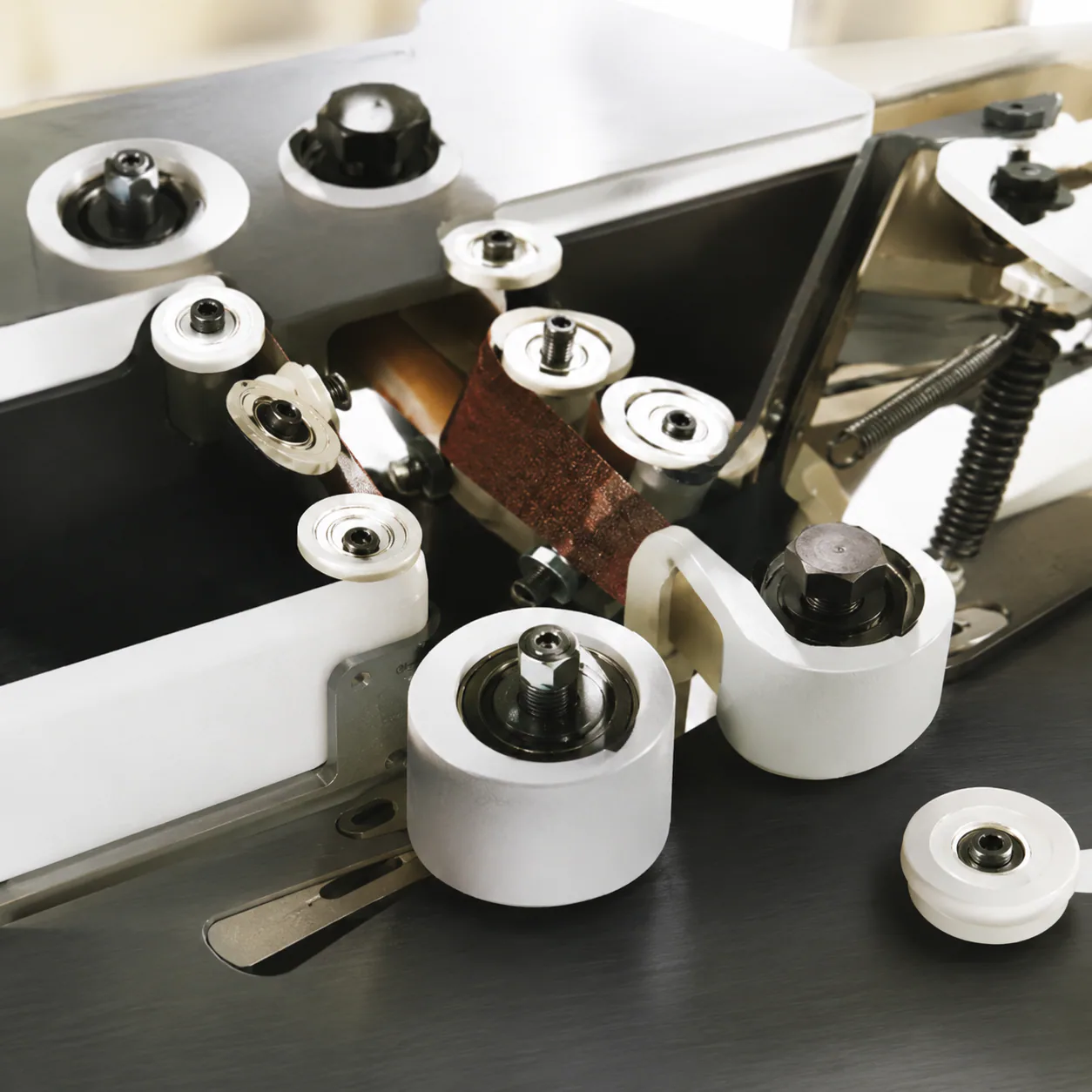

The JASPER MD-2P-C is designed for sanding both side faces of solid wood components. Its triangle sanding structure, stable feeding, and inverter speed control support shaped and irregular furniture parts.
| Model | MD-2P-C |
| Spindle Horsepower | 2.2 kW × 2 |
| Feeding Horsepower | 1.5 kW × 2 |
| Feeding Speed | 6–15 m/min |
| Sanding Capacity | 350 mm minimum length · 100 × 100 mm |
| Abrasive Belt | 1700 × 150 mm |
| Machine Weight | 433 kg |
Technical Parameters
| Specification | Detail |
|---|---|
| Model | MD-2P-C |
| Spindle Horsepower | 2.2 kW × 2 |
| Feeding Horsepower | 1.5 kW × 2 |
| Feeding Speed, Inverter Speed | 6–15 m/min |
| Minimum Sanding Length | 350 mm |
| Maximum Sanding Width | 100 mm |
| Maximum Sanding Height | 100 mm |
| Size of Abrasive Belt | 1700 × 150 mm |
| Vacuuming Mouth Size | 4 in × 1–2 |
| Mechanical Dimensions, L × W × H | 1570 × 930 × 1150 mm |
| Machine Weight | 433 kg |
Application & Selection Guidance
| Question | Direct Answer |
|---|---|
| What is it for? | A double-sided sanding machine for the two side faces of solid wood components. |
| Best for | Shaped and irregular furniture parts that fit the published 350 mm minimum length and 100 × 100 mm sanding capacity. |
| Not ideal for | Parts outside the stated minimum length, maximum width or maximum height. |
| How to select | Choose this triangle sanding structure when the workpiece needs both side faces sanded, then verify the published capacity. |
FAQ
MD-2P-C Questions
What does the MD-2P-C sand?
It sands both side faces of solid wood components.
What parts is it best suited to?
The page identifies shaped and irregular furniture parts as suitable applications.
What is the listed sanding capacity?
The published capacity is 350 mm minimum length with a maximum width and height of 100 mm.
How should it be selected?
Check that the part needs side-face sanding and fits the stated length, width and height limits.
