JASPER— WOODWORKING MACHINERY —
Model: MD-2P-D
MD-2P-D Double-Sided Sanding Machine, Up & Down

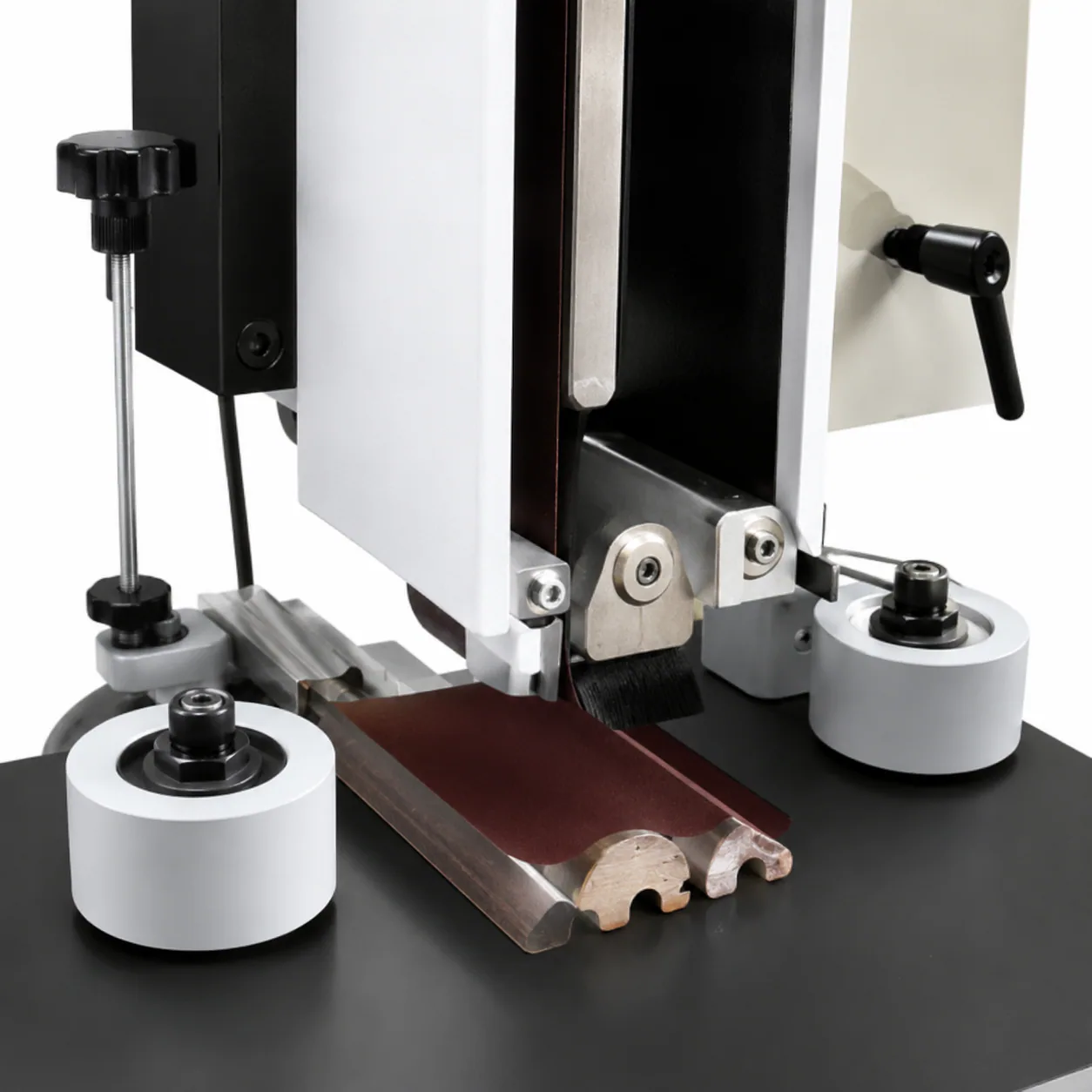

The JASPER MD-2P-D is designed for sanding the upper and lower faces of solid wood components. Stable feeding and inverter speed control provide smooth transport and consistent sanding quality.
| Model | MD-2P-D |
| Spindle Horsepower | 2.2 kW × 2 |
| Feeding Horsepower | 1.5 kW × 2 |
| Feeding Speed | 6–15 m/min |
| Sanding Capacity | 350 mm minimum length · 100 × 150 mm |
| Abrasive Belt | 1000 × 150 mm |
| Machine Weight | 425 kg |
Technical Parameters
| Specification | Detail |
|---|---|
| Model | MD-2P-D |
| Spindle Horsepower | 2.2 kW × 2 |
| Feeding Horsepower | 1.5 kW × 2 |
| Feeding Speed, Inverter Speed | 6–15 m/min |
| Minimum Sanding Length | 350 mm |
| Maximum Sanding Width | 100 mm |
| Maximum Sanding Height | 150 mm |
| Size of Abrasive Belt | 1000 × 150 mm |
| Vacuuming Mouth Size | 4 in × 1–2 |
| Mechanical Dimensions, L × W × H | 1100 × 950 × 1700 mm |
| Machine Weight | 425 kg |
Application & Selection Guidance
| Question | Direct Answer |
|---|---|
| What is it for? | A double-sided sanding machine for the upper and lower faces of solid wood components. |
| Best for | Parts that need upper-and-lower face sanding and fit the published 350 mm minimum length and 100 × 150 mm sanding capacity. |
| Not ideal for | Parts outside the stated minimum length, maximum width or maximum height. |
| How to select | Choose this up-and-down sanding structure when the workpiece needs upper and lower faces sanded, then verify the published capacity. |
FAQ
MD-2P-D Questions
What does the MD-2P-D sand?
It sands the upper and lower faces of solid wood components.
What is the listed sanding capacity?
The published capacity is 350 mm minimum length with a maximum width of 100 mm and maximum height of 150 mm.
How is it different in process direction?

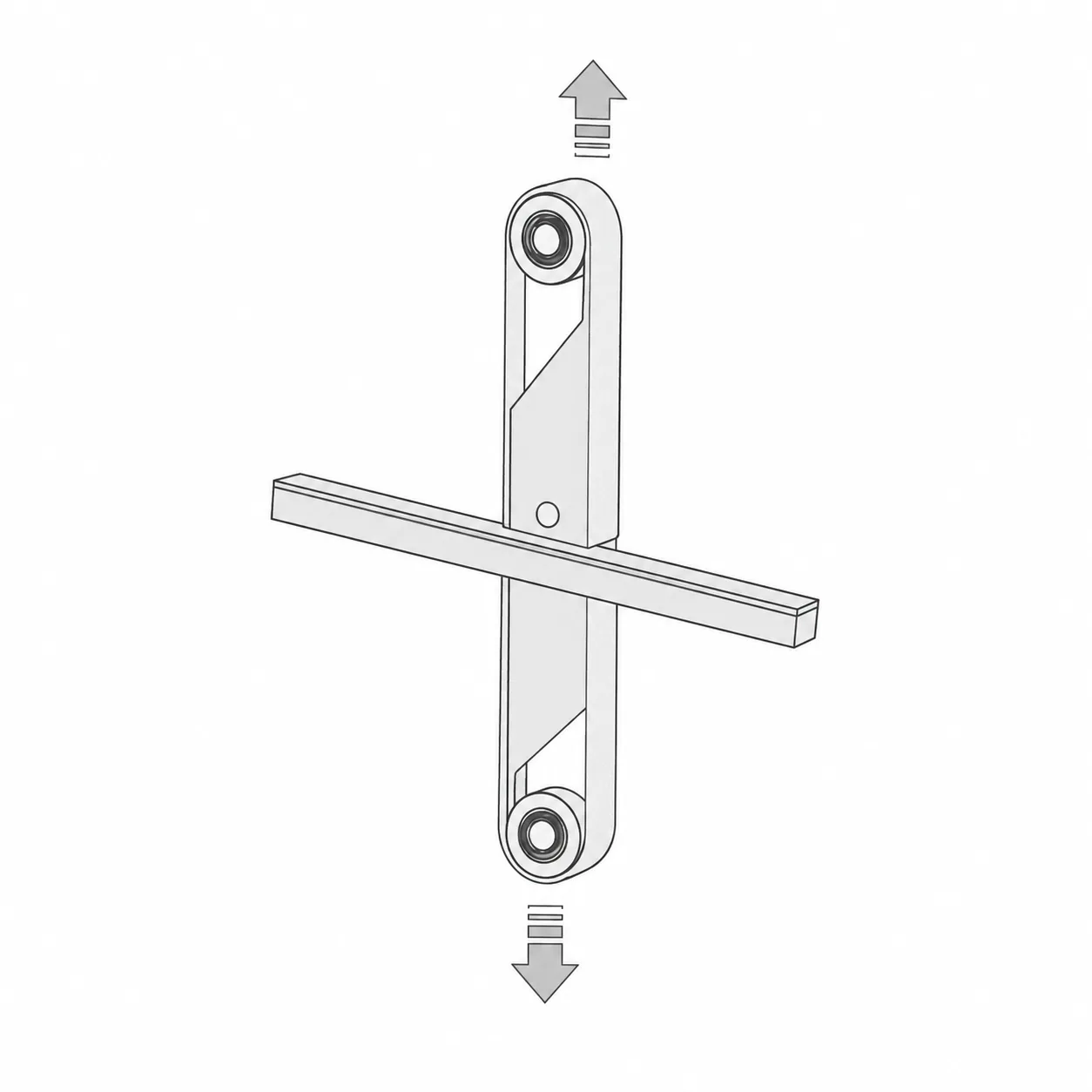

The model is specified for up-and-down sanding: the upper and lower faces of the workpiece.
How should it be selected?
Check that the part needs upper-and-lower face sanding and fits the published capacity.
