JASPER— WOODWORKING MACHINERY —
Model: MD-40
MD-40 Chamfering Machine

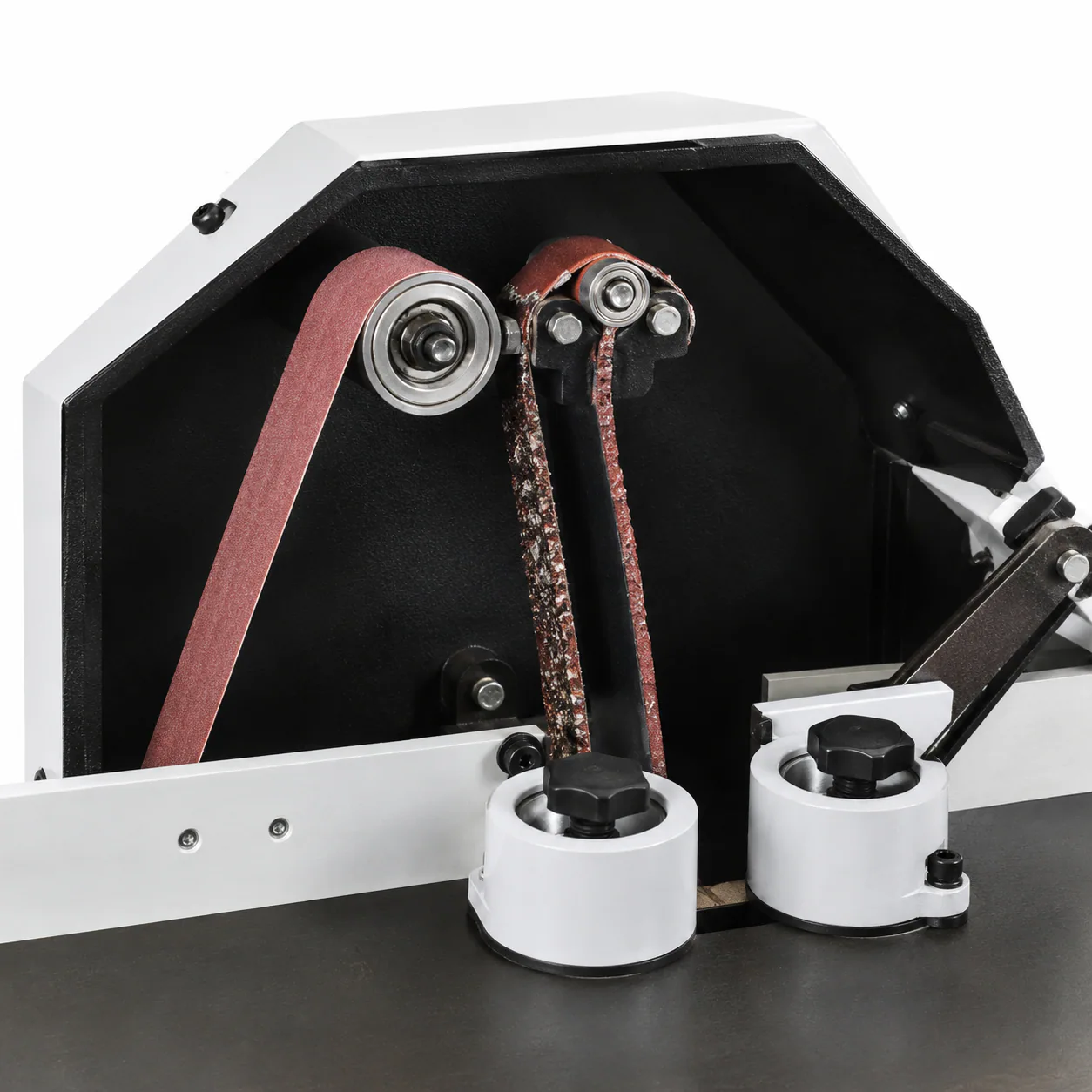

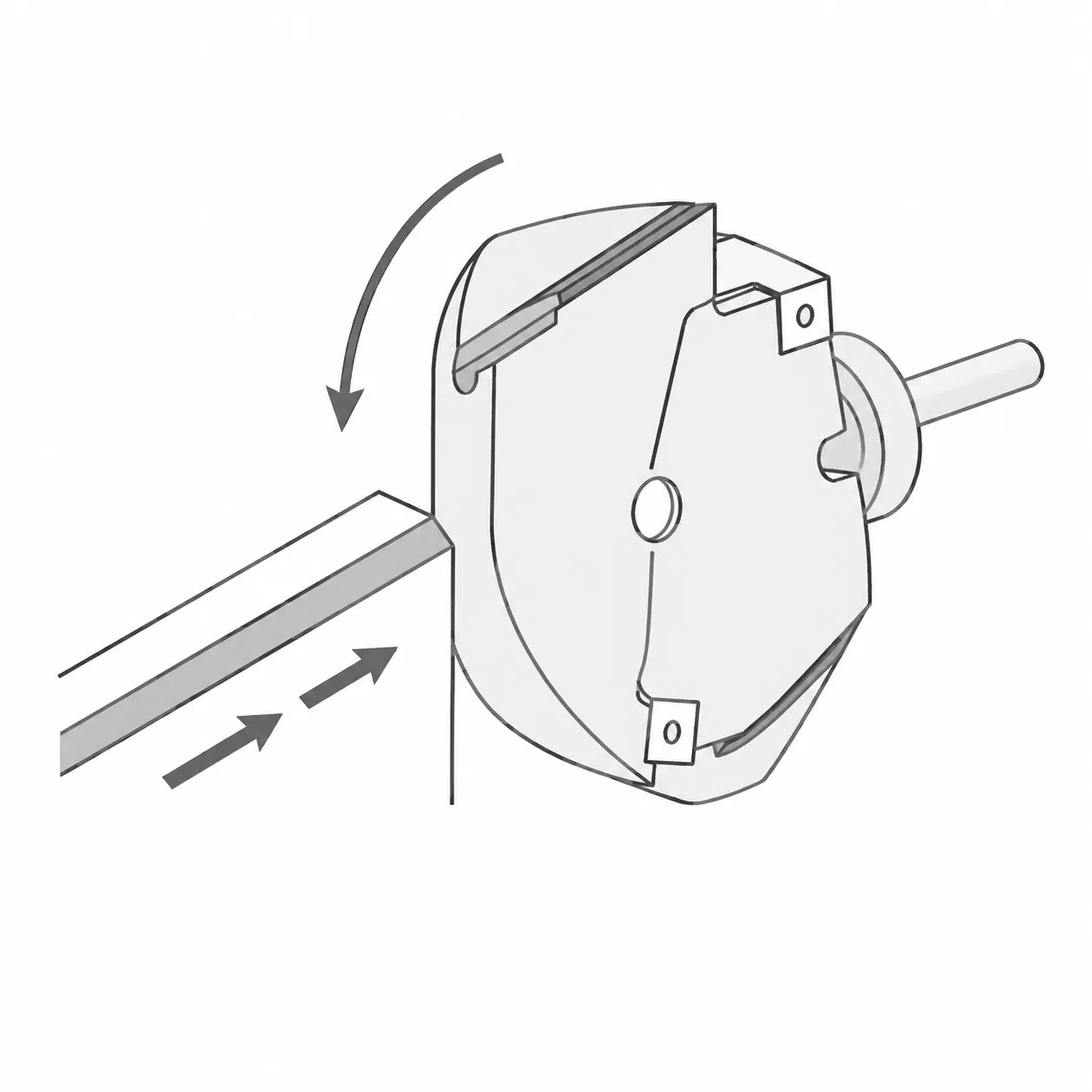

The JASPER MD-40 is designed for chamfering and edge sanding of solid wood components. Stable feeding, inverter speed control, and abrasive belt processing improve edge quality and reduce manual sanding.
| Model | MD-40 |
| Spindle Horsepower | 2.2 kW × 1 |
| Feeding Horsepower | 1.5 kW × 2 |
| Feeding Speed | 6–15 m/min |
| Processing Capacity | 350 mm minimum length · 90 × 90 mm |
| Abrasive Belt | 150 × 1650 mm |
| Machine Weight | 395 kg |
Technical Parameters
| Specification | Detail |
|---|---|
| Model | MD-40 |
| Spindle Horsepower | 2.2 kW × 1 |
| Feeding Horsepower | 1.5 kW × 2 |
| Feeding Speed, Inverter Speed | 6–15 m/min |
| Minimum Processing Length | 350 mm |
| Maximum Processing Width | 90 mm |
| Maximum Working Height | 90 mm |
| Size of Abrasive Belt | 150 × 1650 mm |
| Vacuuming Mouth Size | 4 in × 1 |
| Mechanical Dimensions, L × W × H | 1050 × 950 × 1400 mm |
| Machine Weight | 395 kg |
Application & Selection Guidance
| Question | Direct Answer |
|---|---|
| What is it for? | A machine for chamfering and edge sanding solid wood components with abrasive-belt processing. |
| Best for | Solid wood parts that need chamfering or edge sanding and fit the published 350 mm minimum length and 90 × 90 mm processing capacity. |
| Not ideal for | Parts outside the stated minimum length, maximum width or maximum working height. |
| How to select | Confirm that chamfering or edge sanding is the required process, then match the part dimensions to the published capacity. |
FAQ
MD-40 Questions
What does the MD-40 process?
It is designed for chamfering and edge sanding solid wood components.
What is the published processing capacity?
The listed capacity is 350 mm minimum length with a maximum width and working height of 90 mm.
What abrasive belt is listed?
The technical parameters list a 150 × 1650 mm abrasive belt.
How should it be selected?
Check that the part needs chamfering or edge sanding and fits the published capacity.
