MD-505A CNC 5-Axis Multi-Function Tenon Mortise End Cutting Machine
Quick answer: The JASPER MD-505A integrates forming, grooving, drilling, tenon mortise processing, and end cutting in one setup. Its 5-axis CNC system, rotary table clamping fixtures, and full servo control suit complex solid wood components.
| Model | MD-505A |
| Processing Capacity | 5000 × 300 × 80 mm |
| Control System | 5-Axis CNC Control System |
| Fixture | 6 sets fixed at 90° |
| Way of Working | Double-station machining |
| Programming | UG / CAM Programming |
| Total Power | 55 kW |
| Machine Weight | 7000 kg |
Standard Equipment
| CNC Control & Servo System | Machine Structure & Motion System | Clamping & Spindle System |
|---|---|---|

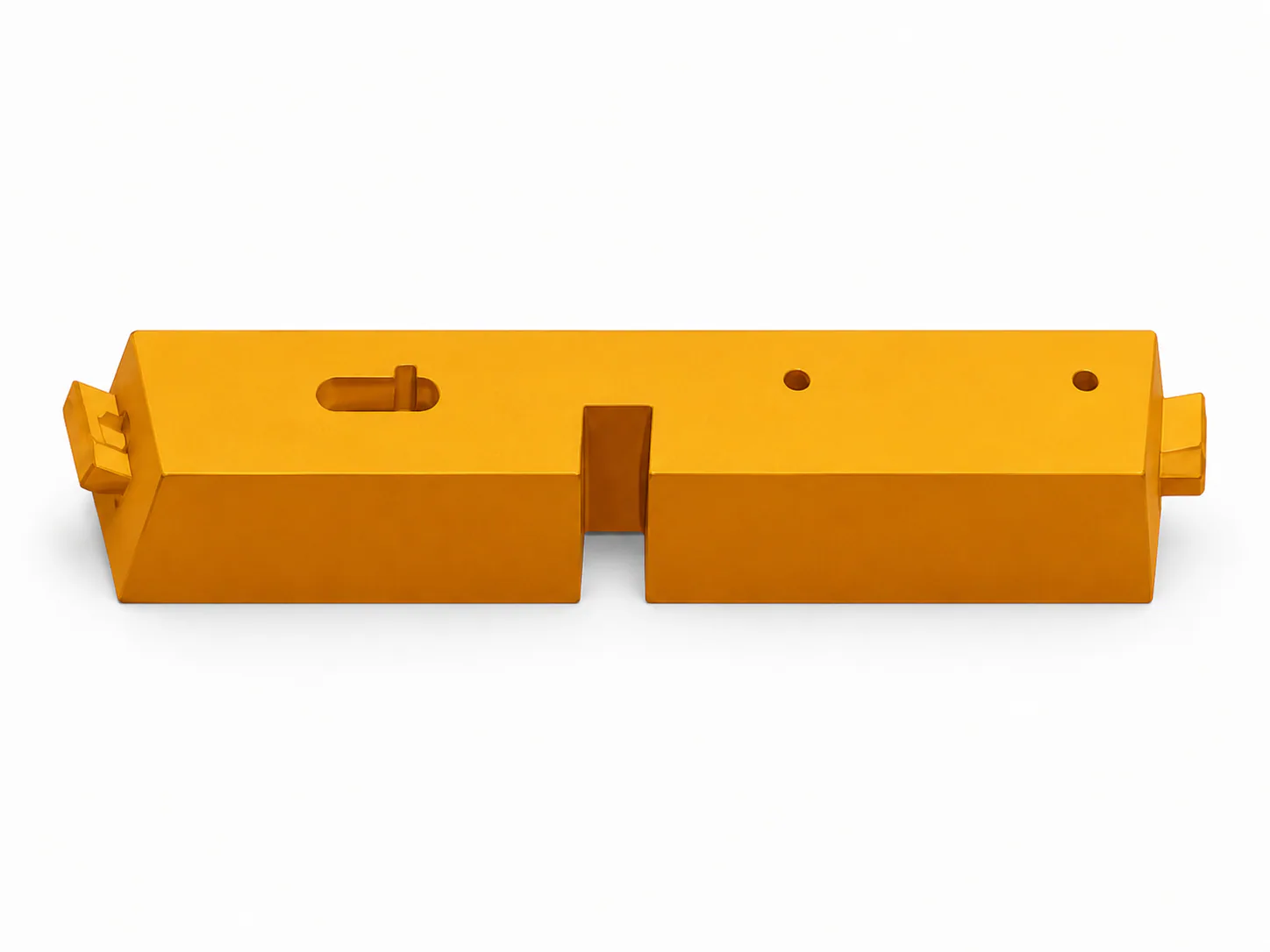

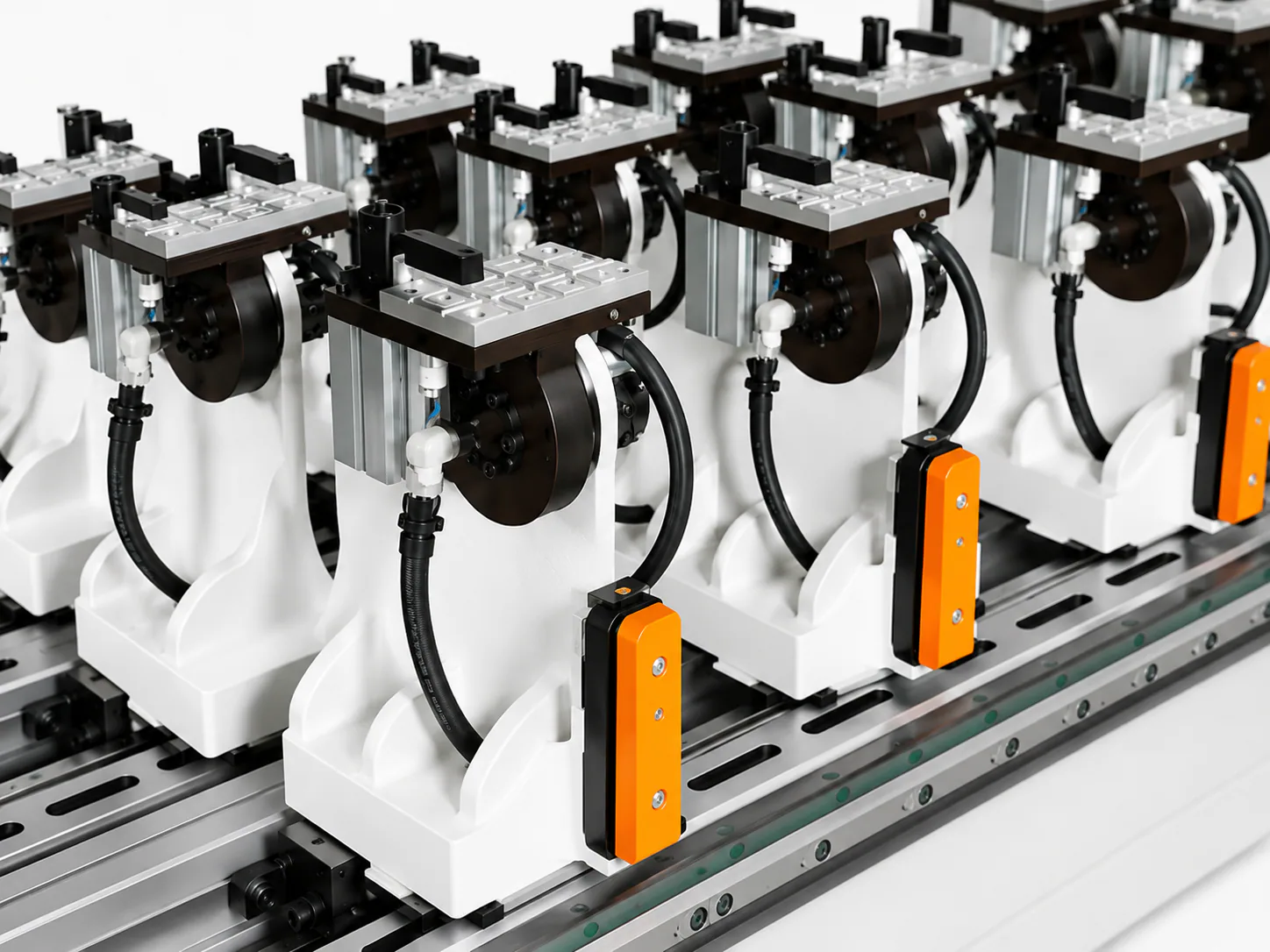

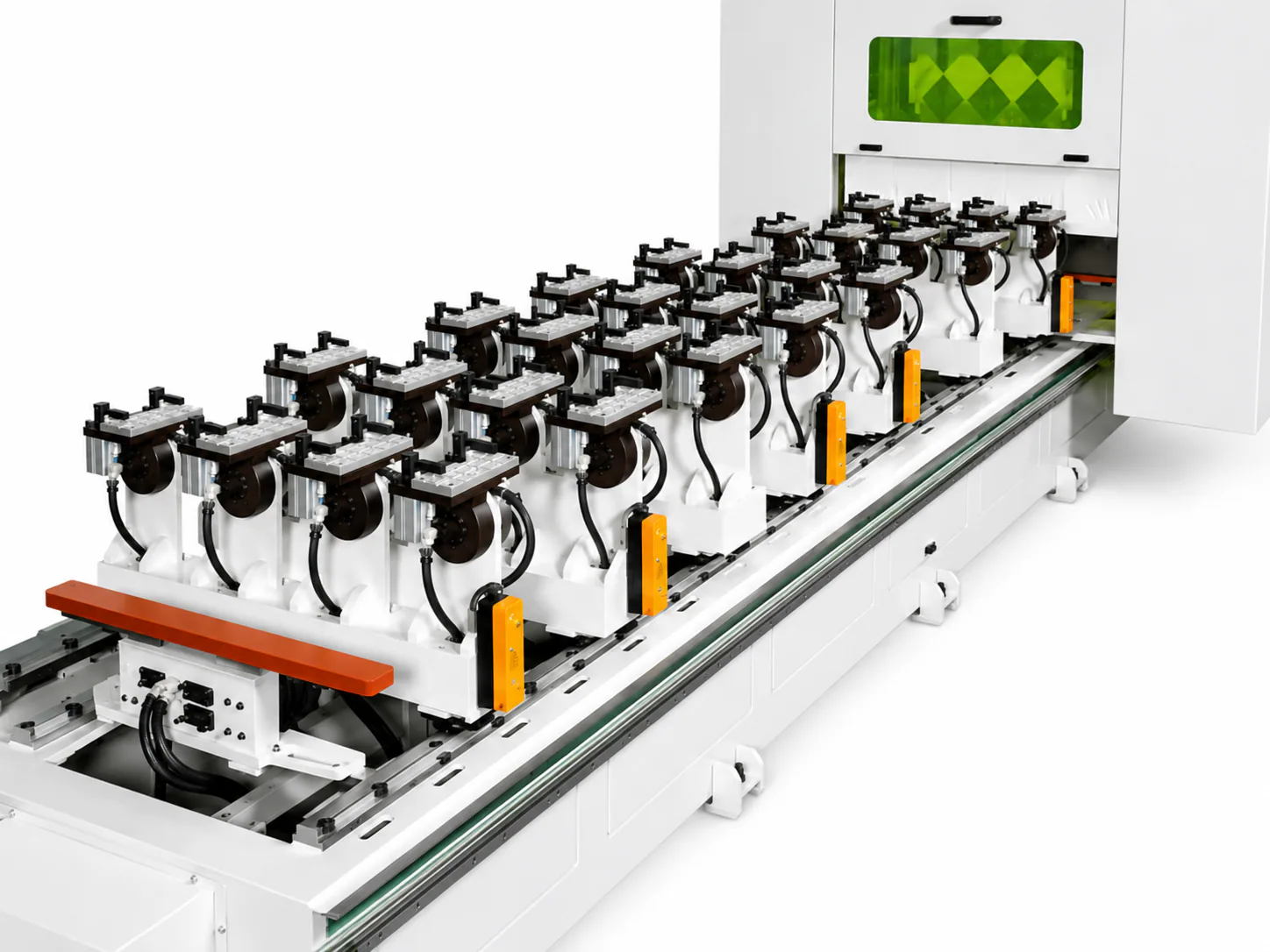

| Advanced CNC control system | Heavy-duty welded machine frame | Rotary table clamping fixtures |
| High-performance servo drive system | Stable linear guide system | High-precision spindle units |
| User-friendly control interface | Efficient processing structure |
Technical Parameters
| Specification | Detail |
|---|---|
| Model | MD-505A |
| Max. Processing Length | 5000 mm |
| Max. Processing Width | 300 mm |
| Max. Processing Thickness | 80 mm |
| X-Axis Servo Motor | 1.5 kW |
| Y1-Axis Servo Motor | 1.3 kW |
| Y2-Axis Servo Motor | 1.3 kW |
| Z-Axis Servo Motor | 2.0 kW |
| A-Axis Servo Motor | 0.4 kW × 24 pcs |
| B-Axis Servo Motor | 0.75 kW |
| Spindle Motor | 5.5 kW × 4, ER32 + Φ25 mm / 3.7 kW × 4, ER25 |
| Fixture | 6 sets fixed at 90° |
| Control System | 5-Axis CNC Control System |
| Programming | UG / CAM Programming |
| Spindle Wheelbase | 260 mm |
| Total Power | 55 kW |
| Voltage | 380 V |
| Air Pressure | 0.8 MPa |
| Way of Working | Double-station machining |
| Machine Dimensions | 6500 × 2200 × 2550 mm |
| Weight of Machinery | 7000 kg |
FAQ
MD-505A Selection Questions
What is the MD-505A best for?
It is best for complex solid wood components that need forming, grooving, drilling, tenon mortise processing, and end cutting in one setup.
What workpiece range should be checked?
Check the part against the listed 5000 × 300 × 80 mm processing capacity before selection.
What production setup does the MD-505A use?
The machine uses a 5-axis CNC control system, six fixtures fixed at 90°, and double-station machining. The listed programming method is UG / CAM.
When is the MD-505A not the right fit?
It is not the right fit when required workpiece dimensions exceed the listed 5000 × 300 × 80 mm capacity. Confirm the part drawing and required processes before quotation.
What is the standard order lead time?
The listed lead time is 30–45 days. The exact timeline is confirmed with the order.
