JASPER— WOODWORKING MACHINERY —
Models: MDX-1500T2S2 / MDX-1500T4 / MDX-2400T2S2 / MDX-2400T4
MDX Series CNC Double Profile Milling Machine

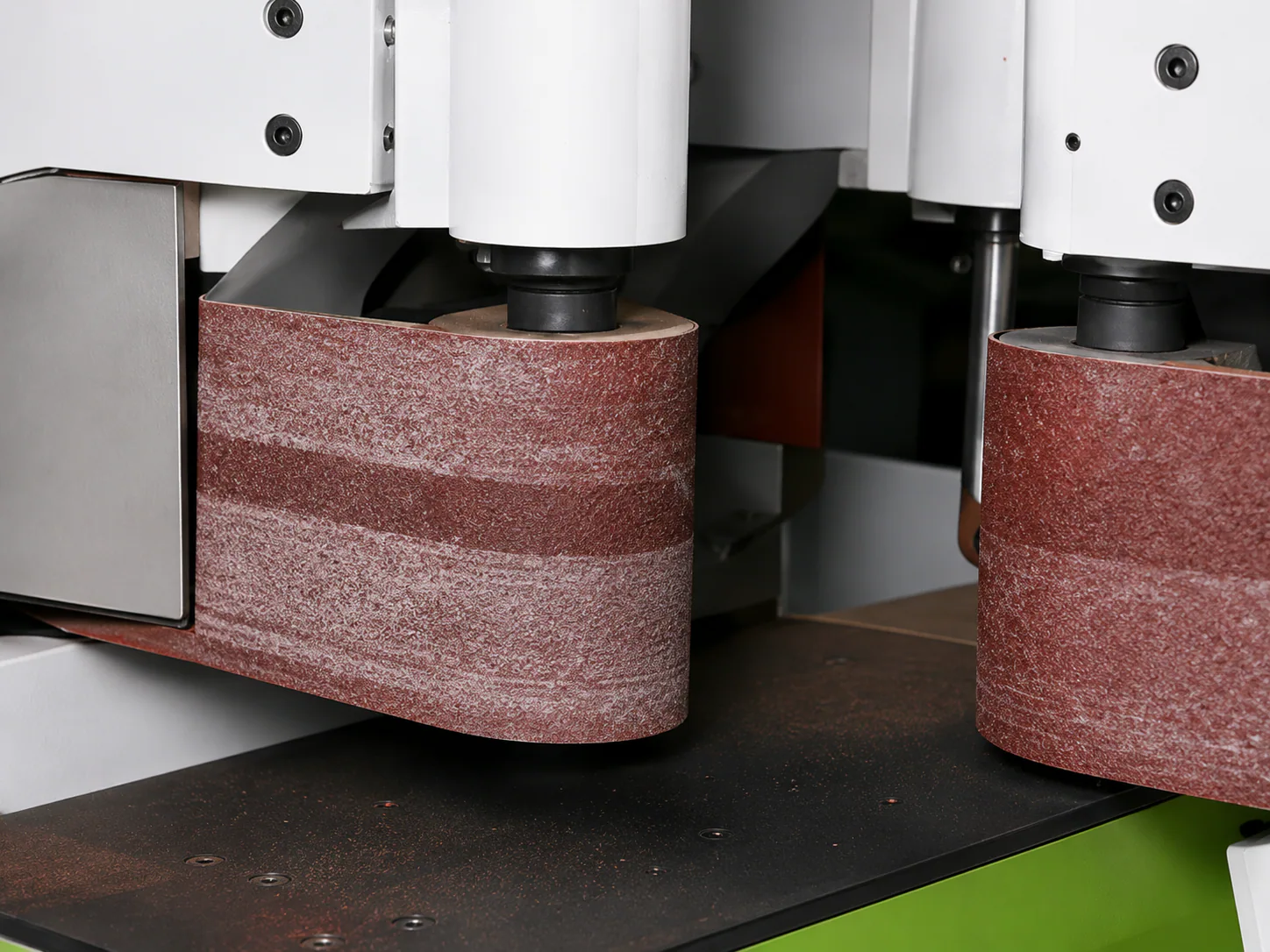

Quick answer: The JASPER MDX Series CNC Double Profile Milling Machine is for precise processing of solid wood furniture components and special-shaped workpieces. It combines stable feeding, accurate profiling, positioning, high-speed spindle processing, and sanding finish functions.
| Available Models | MDX-1500T2S2 / MDX-1500T4 / MDX-2400T2S2 / MDX-2400T4 |
| Max. Workpiece Length | 1500 / 2400 mm |
| Max. Workpiece Width | 300 mm / up to 1500 mm |
| Max. Workpiece Thickness | 180 mm |
| Processing Speed | 1–15 m/min |
| Return Speed | 60 m/min |
| Spindle Speed | 9000 rpm |
| Machine Weight | 3000 / 3800 kg |
Standard Equipment
| Control & Software System | Transmission & Processing System |
|---|---|
| Advanced CNC control system | Stable transmission system |
| CAD software compatibility | Safe operating structure |
| Reliable electrical components | Precision guide and feed components |
| Easy operation and maintenance | Efficient processing performance |
Technical Parameters
| Item | MDX-1500T2S2 | MDX-1500T4 | MDX-2400T2S2 | MDX-2400T4 |
|---|---|---|---|---|
| Max. Workpiece Length | 1500 mm | 1500 mm | 2400 mm | 2400 mm |
| Max. Workpiece Width | 300 mm / up to 1500 mm | 300 mm / up to 1500 mm | 300 mm / up to 1500 mm | 300 mm / up to 1500 mm |
| Max. Workpiece Thickness | 180 mm | 180 mm | 180 mm | 180 mm |
| Processing Speed | 1–15 m/min | 1–15 m/min | 1–15 m/min | 1–15 m/min |
| Return Speed | 60 m/min | 60 m/min | 60 m/min | 60 m/min |
| Spindle Speed | 9000 rpm | 9000 rpm | 9000 rpm | 9000 rpm |
| X Axis Servo | 2.0 kW | 2.0 kW | 3.0 kW | 3.0 kW |
| Y Axis Servo | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| Z Axis Servo | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| U Axis Servo | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| V Axis Servo | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| Vacuum Mouth Size | 6 in × 10 | 6 in × 10 | 6 in × 10 | 6 in × 10 |
| Machine Size, L × W × H | 5300 × 2450 × 1750 mm | 5300 × 2450 × 1750 mm | 7200 × 2450 × 1750 mm | 7200 × 2450 × 1750 mm |
| Machine Weight | 3000 kg | 3800 kg | 3800 kg | 3800 kg |
FAQ
Common Questions
What workpieces is the MDX Series best for?

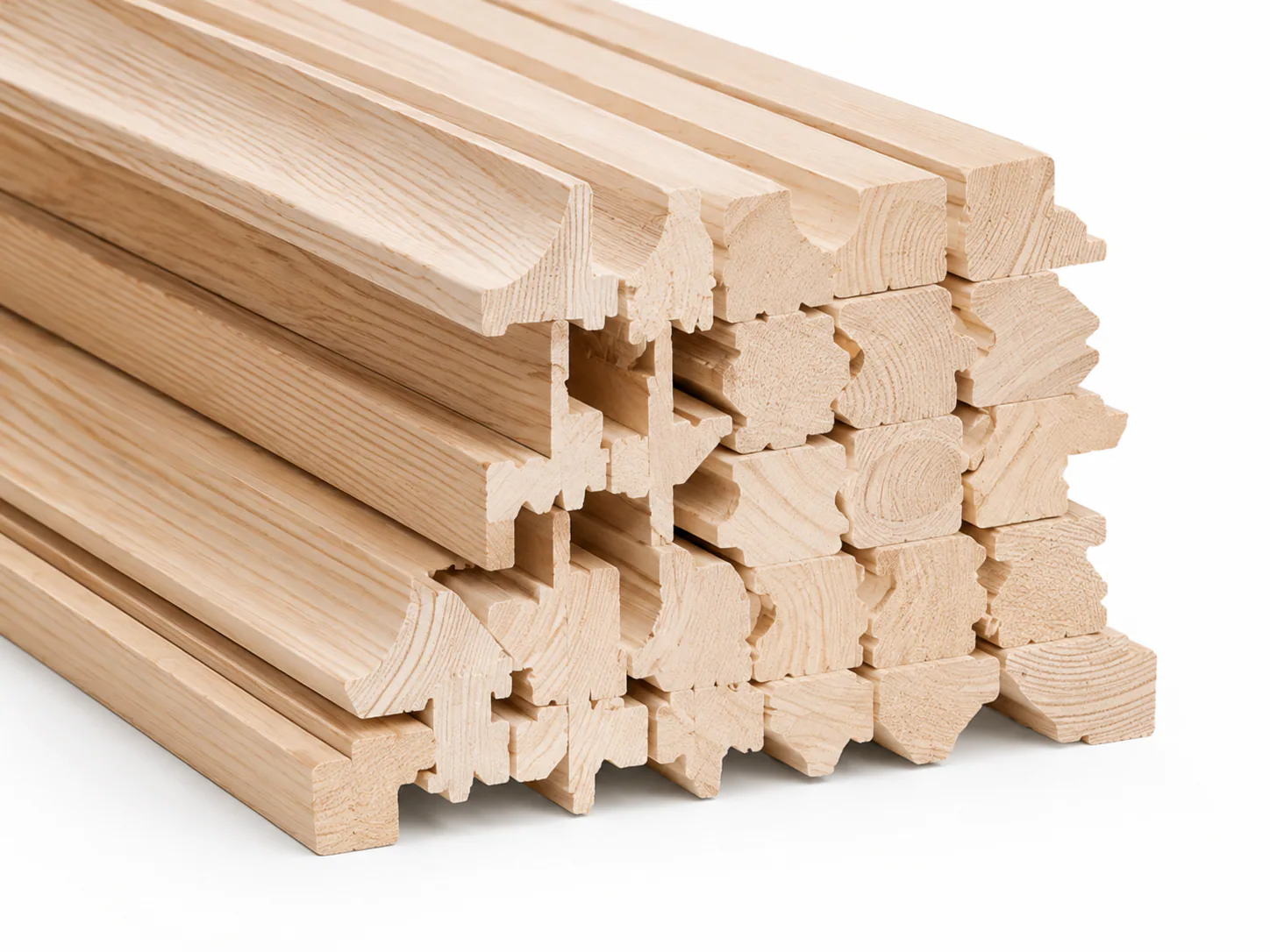

It is best for solid wood furniture components and special-shaped workpieces that need profiling and the listed sanding finish functions.
How do I choose a 1500 or 2400 MDX model?
Choose by required workpiece length: the listed 1500 models process up to 1500 mm and the 2400 models up to 2400 mm. Confirm the full part size before quotation.
What workpiece range should be checked?
The listed range is up to 180 mm thickness, with a maximum workpiece width of 300 mm or up to 1500 mm as specified. Check the technical-parameter table for the selected model.
When is the MDX Series not the right fit?
It is not the right fit when the required workpiece dimensions exceed the listed model range. Confirm length, width, thickness, and the required profiling process before selection.
What is the standard order lead time?
The listed lead time is 30–45 days. The exact timeline is confirmed with the order.
