JASPER— WOODWORKING MACHINERY —
Model: REC-635AZ
REC-635AZ Double Side Planer
The JASPER REC-635AZ Double Side Planer is designed for efficient and accurate planing of both sides of solid wood boards and panel-based materials. It helps manufacturers achieve smooth surface finish, stable feeding, and consistent thickness accuracy.
| Model | REC-635AZ |
| Maximum Processing Width | 620 mm |
| Processing Thickness Range | 9–200 mm |
| Minimum Processing Length | 315 mm |
| Spindle Speed | 5500 r/min |
| Feeding Speed | 9–25 m/min |
| Total Power | 28.62 kW |
| Machine Size, L × W × H | 2800 × 1500 × 1820 mm |
Standard Equipment
| Cutter & Worktable System | Control & Feeding System |
|---|---|

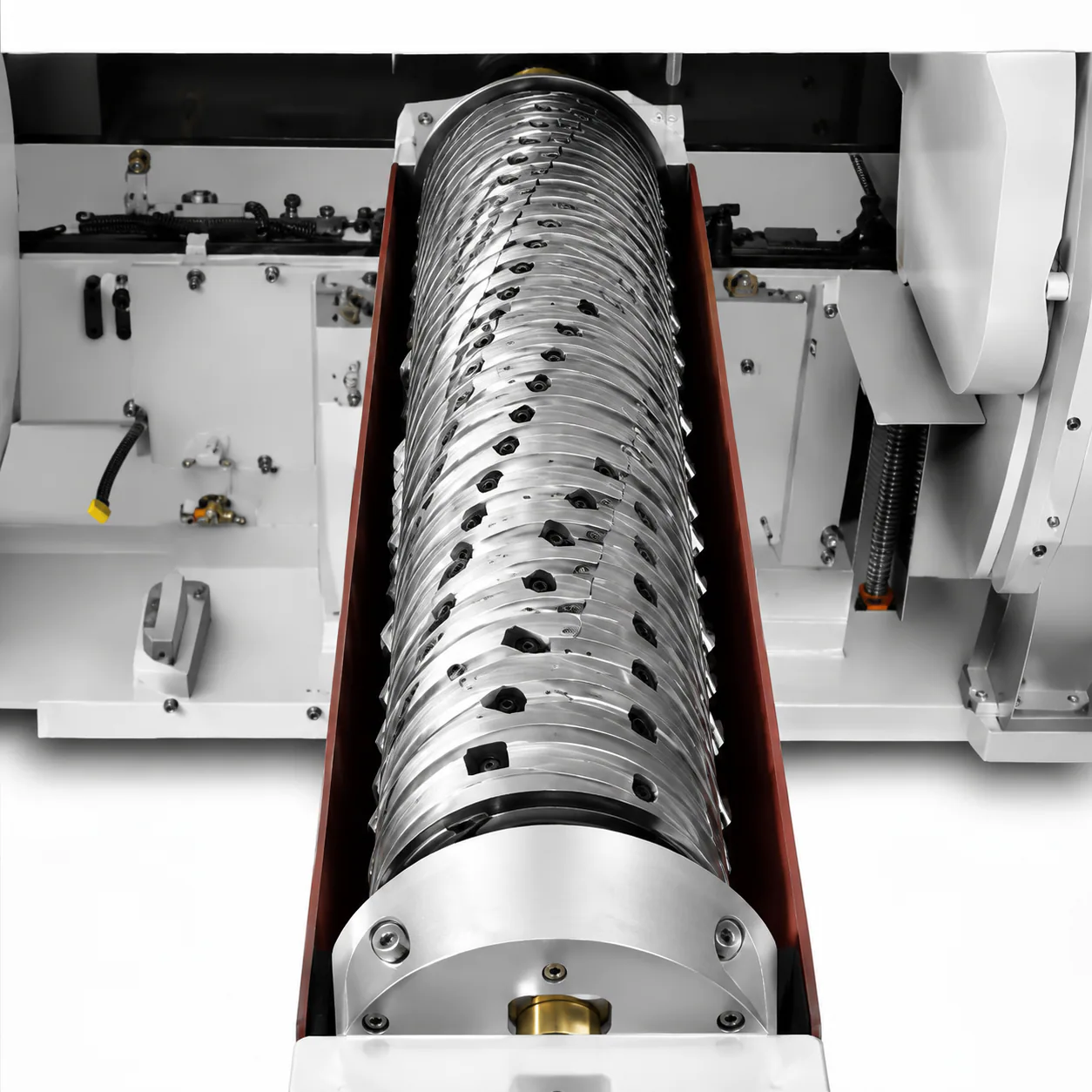

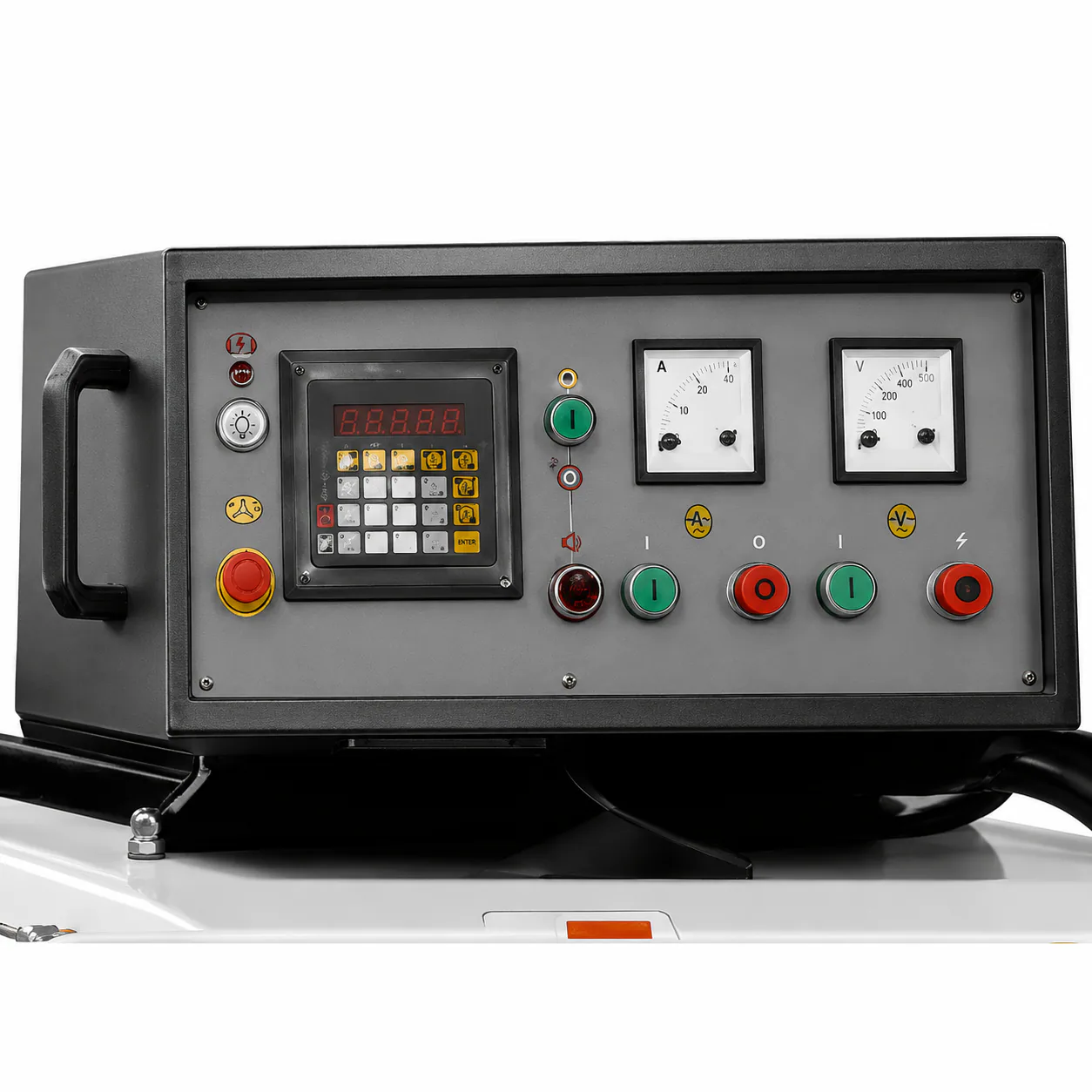

| Spiral cutter / flat cutter optional | Digital thickness setting control |
| Hard chrome plated working platform | Countertop roller height adjuster |
| Quick belt tensioner | Automatic oil supply system |
| Centralized oil supply system |
Technical Parameters
| Item | REC-635AZ |
|---|---|
| Model | REC-635AZ |
| Maximum Processing Width | 620 mm |
| Processing Thickness Range | 9–200 mm |
| Minimum Processing Length | 315 mm |
| Spindle Speed | 5500 r/min |
| Stepless Variable Feeding Speed | 9–25 m/min |
| Upper Cutter Shaft Motor | 15 kW |
| Lower Cutter Shaft Motor | 11 kW |
| Feed Motor | 2.2 kW |
| Lift Motor | 0.37 kW |
| Total Power | 28.62 kW |
| Blade Diameter | 130 mm |
| Blade Specifications | 15 × 15 × 2.5 |
| Number of Blades | 156 |
| Number of Rollers | Up / Down 5 |
| Weight | 3000 kg |
| Machine Size, L × W × H | 2800 × 1500 × 1820 mm |
| Lifting Structure | Cylindrical Lift |
Application & Selection Guidance
| Question | Direct Answer |
|---|---|
| What is it for? | A double-side planer for planing both sides of solid wood boards and panel-based materials to achieve a smooth surface finish and consistent thickness. |
| Best for | Board processing within the published 620 mm maximum width, 9–200 mm thickness range and 315 mm minimum length. |
| Not ideal for | Boards outside the published width, thickness or minimum-length limits. |
| How to select | Verify board dimensions against the processing range, then choose the cutter and feeding configuration that matches the required planing process. |
FAQ
Common Questions
What does the REC-635AZ plane?
It planes both sides of solid wood boards and panel-based materials.
What board sizes fit the REC-635AZ?
The published limits are 620 mm maximum width, 9–200 mm thickness and 315 mm minimum length.
What cutter options are listed?
The standard-equipment table lists a spiral cutter or flat cutter as optional.
What should be checked before selecting this planer?
Confirm the board dimensions and required planing process against the stated processing range and configuration.
