JASPER VH-M Series 4-Side Moulder
Models: M523UA / M623UA / M723UA

VH-M Series 4-Side Moulder

The JASPER VH-M Series 4-Side Moulder is built for efficient and precise four-side moulding of solid wood components. It is suitable for processing straight profiles, shaped profiles, decorative strips, furniture parts, door and window frame components, stair parts, flooring profiles, wall panel profiles, and customized solid wood products.

Available ModelsM523UA / M623UA / M723UA
Working Width25–230 mm
Working Thickness8–160 mm
Feeding Speed6–36 m/min
Spindle DiameterΦ40 mm
Spindle Speed6200 r/min
Air Pressure0.6 MPa
Required Air Volume12800 / 15000 m³/h
Lead Time
30–45 days
MOQ
1 unit
Warranty
2 years
FOB Port
Guangzhou

Standard Equipment

Machine Structure & Control SystemFeeding, Guide & Dust Collection System

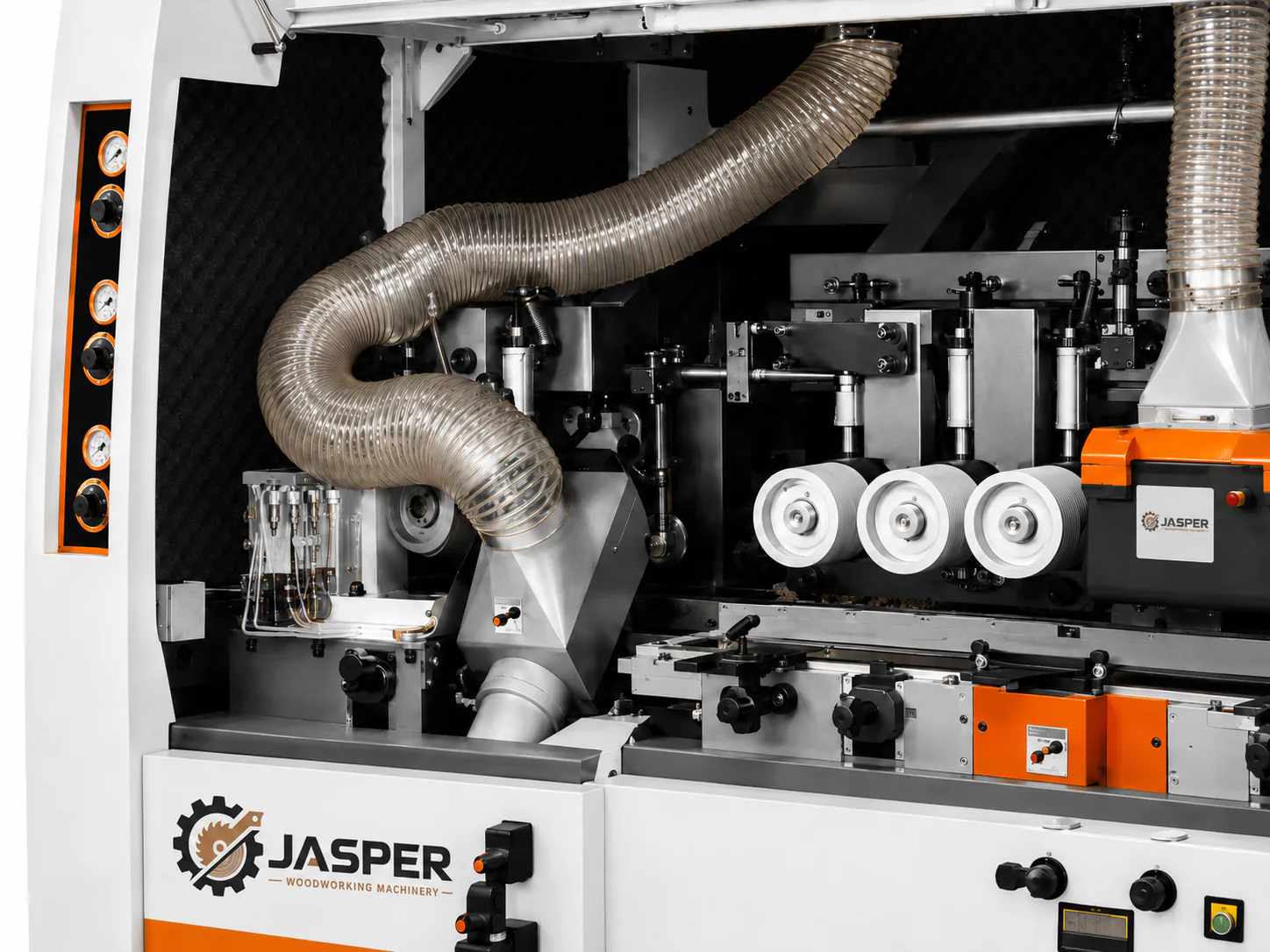

Universal head knife system, last axisHigh-efficiency dust collection system

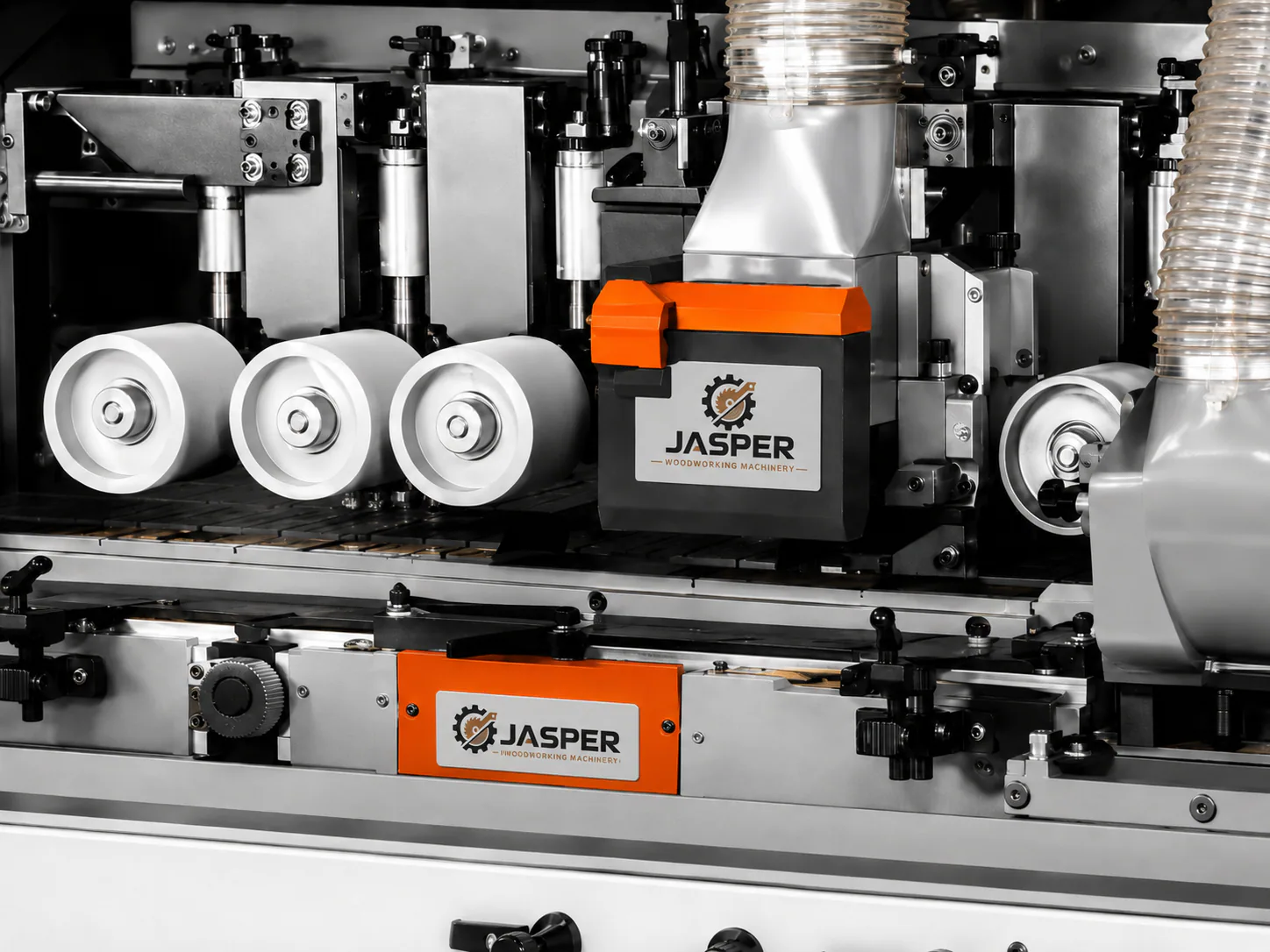

Stable heavy-duty machine framePrecision guide and feed components

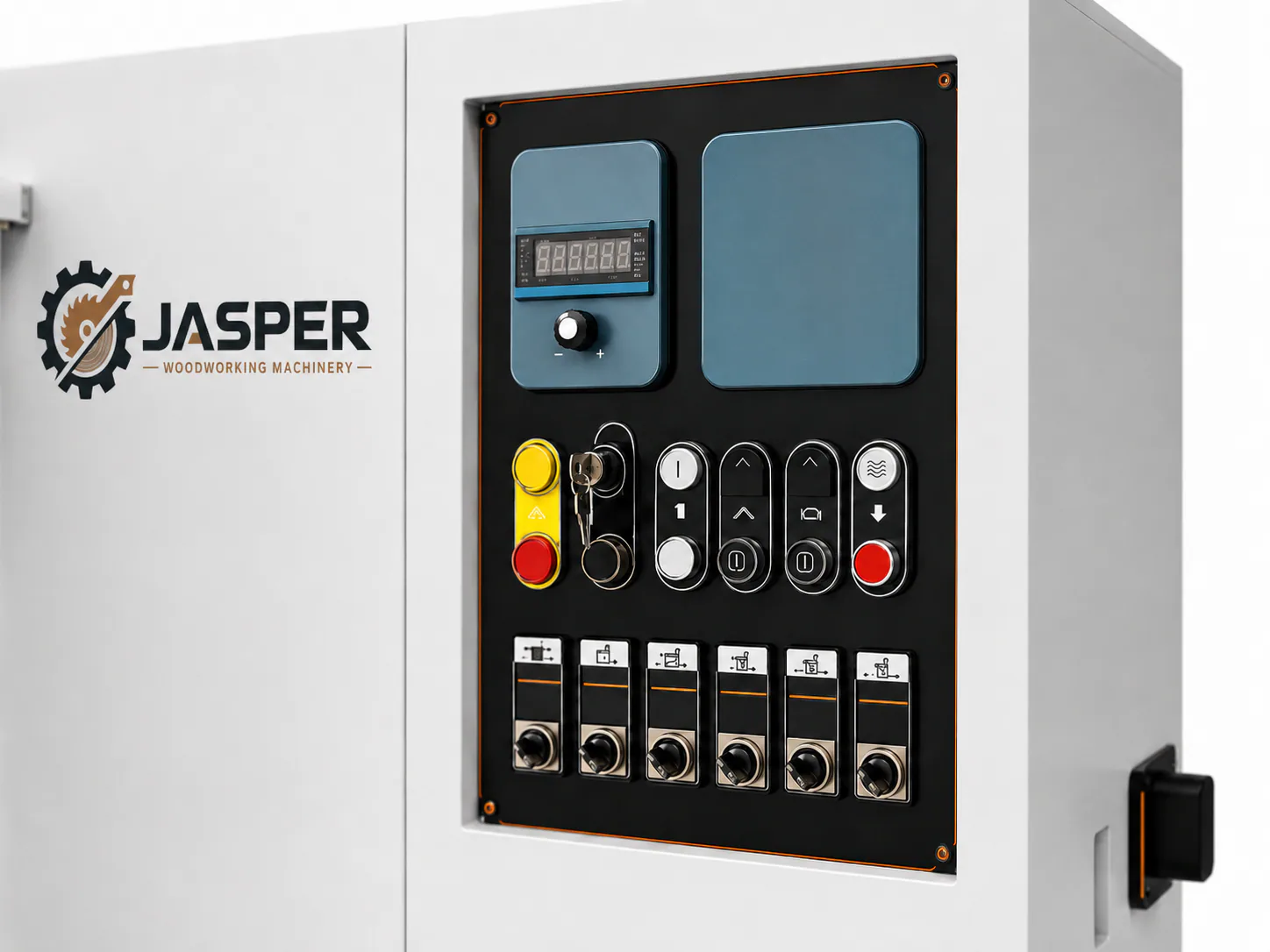

Digital control interfaceCentralized lubrication system
Adjustable spindle configuration

Machine Parameters

ItemM523UAM623UAM723UA
Working Width25–230 mm25–230 mm25–230 mm
Working Thickness8–160 mm8–160 mm8–160 mm
In-feed Table Length1970 mm1970 mm1970 mm
Feeding Speed6–36 m/min6–36 m/min6–36 m/min
Spindle DiameterΦ40 mmΦ40 mmΦ40 mm
Spindle Speed6200 r/min6200 r/min6200 r/min
Air Pressure0.6 MPa0.6 MPa0.6 MPa

Motor Power

ItemM523UAM623UAM723UA
1st Bottom Spindle7.5/11/10HP7.5/11/10HP7.5/11/10HP
Right Vertical Spindle7.5/11/10HP7.5/11/10HP7.5/11/10HP
Left Vertical Spindle7.5/11/10HP7.5/11/10HP7.5/11/10HP
1st Top Spindle11/15/15HP11/15/15HP11/15/15HP
2nd Top Spindle——7.5/10/10HP
Top Spindle Lifting——0.37/0.5HP × 2
Feeding Beam Lifting0.75/1/1HP0.75/1/1HP0.75/1/1HP
Feeding Motor5.5/7.5/10HP5.5/7.5/10HP5.5/7.5/15HP
Universal Spindle5.5/7.5/7.5HP5.5/7.5/7.5HP5.5/7.5/7.5HP
Left Vertical Spindle In and Out——5.5/7.5/7.5HP
Total Power45.25/46.1/51HP52.75/57.7/72HP62.9/66.7/65HP

Spindle Diameter Range

ItemM523UAM623UAM723UA
1st Bottom SpindleΦ125 mmΦ125 mmΦ125 mm
Right Vertical SpindleΦ125–Φ180 mmΦ125–Φ180 mmΦ125–Φ180 mm
Left Vertical SpindleΦ125–Φ180 mmΦ125–Φ180 mmΦ125–Φ180 mm
1st Top SpindleΦ125–Φ180 mmΦ125–Φ180 mmΦ125–Φ180 mm
2nd Top Spindle——Φ125–Φ180 mm
2nd Bottom Spindle—Φ125–Φ200 mmΦ125–Φ180 mm
Universal SpindleΦ125–Φ160 mmΦ125–Φ160 mmΦ125–Φ160 mm

Overall Information

ItemM523UAM623UAM723UA
Overall Dimensions, L × W × H2820 × 1800 × 1700 mm2820 × 1800 × 1700 mm3120 × 1800 × 1700 mm
Weight4500 kg4800 kg5100 kg
Required Air Volume12800 m³/h12800 m³/h15000 m³/h

Application & Selection Guidance

QuestionDirect Answer
What is it for?A four-side moulder for solid wood components, including straight and shaped profiles, decorative strips, furniture parts, frame components, stair parts, flooring profiles and wall panel profiles.
Best forSolid wood profile work within the published 25–230 mm width and 8–160 mm thickness range.
Not ideal forWorkpieces outside the published width or thickness range.
How to selectChoose between M523UA, M623UA and M723UA by matching the profile, required spindle arrangement and published air-volume requirement to the production need.
Jasper CNC Product Catalogue (PDF)
Full product line, specifications & company profile — 12 pages
Download Brochure PDF
FAQ

Common Questions

What can the VH-M Series process? +

It is designed for four-side moulding of solid wood profiles and components, including furniture, frame, stair, flooring and wall-panel profiles.

What profile sizes fit this series? +

The published working width is 25–230 mm and the working thickness is 8–160 mm.

Which models are available? +

The listed models are M523UA, M623UA and M723UA.

What should be checked before selecting a model? +

Confirm the profile dimensions, needed spindle arrangement and required air volume against the model tables.
