JASPER— WOODWORKING MACHINERY —
Integrated Sanding System
Wood Sanding Line for Straight and Curved Solid Wood Components
The JASPER Wood Sanding Line integrates automatic feeding, conveying, surface sanding, edge sanding, and brush finishing in one continuous process for straight and curved solid wood components.

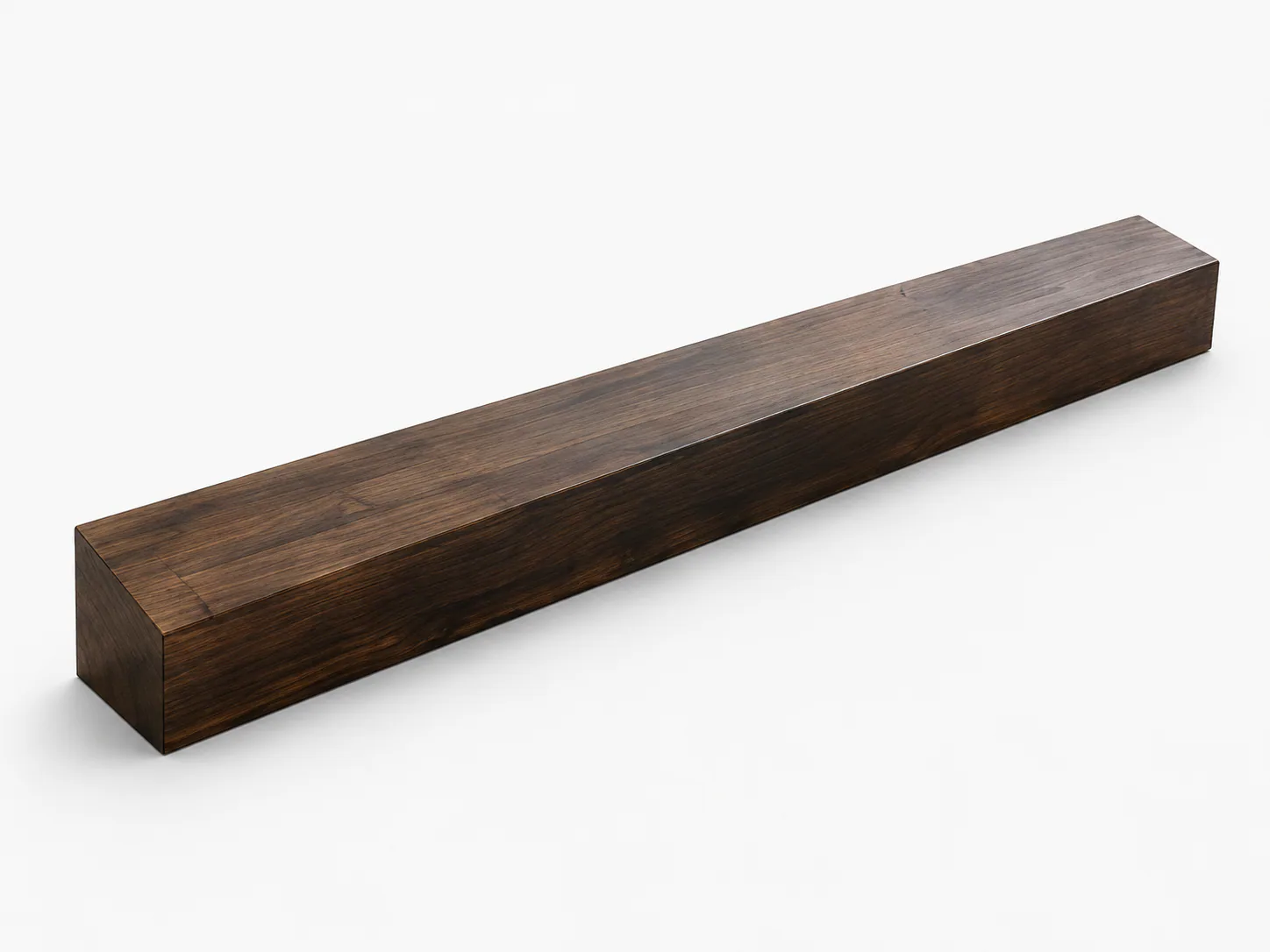

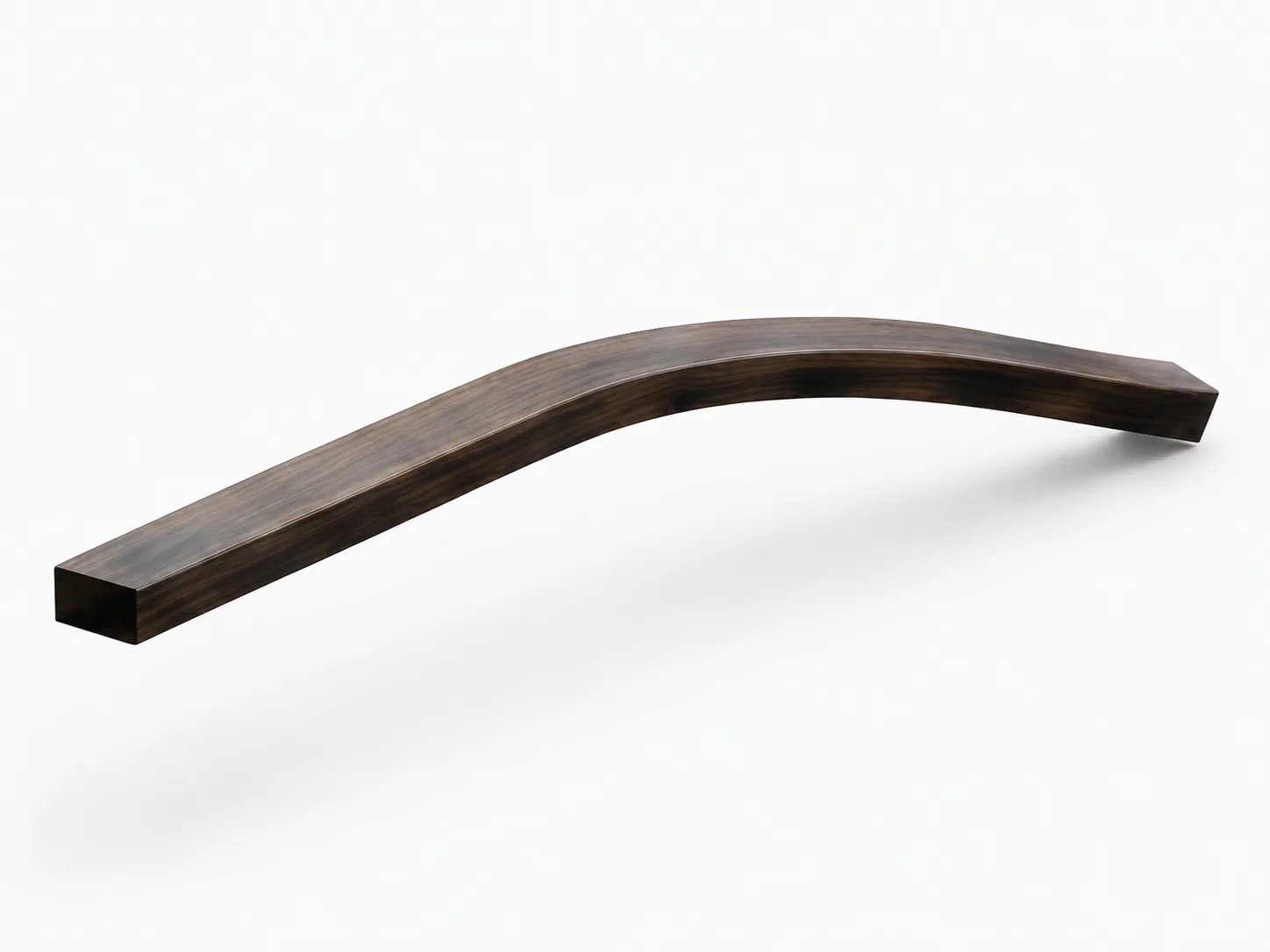

| Suitable Workpieces | Straight and curved solid wood components |
| Main Applications | Chair legs, table legs, frames and shaped furniture parts |
| Feeding System | Automatic Feeding Machine |
| Conveying System | 5 Belt Conveyors |
| Belt Sanding | 3 Double-Sided Belt Sanders |
| Edge Sanding | 1 Edge Sander |
| Brush Finishing | 2 Double-Sided Brush Sanding Machines |
Standard Equipment
| Feeding & Conveying System | Sanding System |
|---|---|
| Automatic Feeding Machine | 3 Double-Sided Belt Sanders |
| 5 Belt Conveyors | 1 Edge Sander |
| 2 Double-Sided Brush Sanding Machines |
Process Flow
| Step | Equipment | Function |
|---|---|---|
| A | Automatic Feeding Machine | Automatic feeding for continuous processing |
| B | Double-Sided Belt Sander, Left and Right | Coarse sanding on both side faces |
| C | Double-Sided Belt Sander, Triangle | Fine sanding on both side faces |
| D | Double-Sided Belt Sander, Top and Bottom | Fine sanding on upper and lower faces |
| E | Edge Sander | Sanding the four edges |
| F | Double-Sided Brush Sanding Machine, Left and Right | Brush sanding on left and right sides |
| G | Double-Sided Brush Sanding Machine, Top and Bottom | Brush sanding on top and bottom sides |
Application & Selection Guidance
| Question | Direct Answer |
|---|---|
| What is it for? | An integrated line for continuously feeding, conveying, surface sanding, edge sanding and brush finishing straight and curved solid wood components. |
| Best for | Chair legs, table legs, frames and shaped furniture parts that need the listed multi-step sanding process. |
| Not ideal for | Workpieces outside the stated scope of straight and curved solid wood components. |
| How to select | Compare the required finishing sequence with the listed process flow: feeding, coarse and fine sanding, edge sanding, then brush sanding. |
FAQ
Wood Sanding Line Questions
What workpieces is the line designed for?
It is designed for straight and curved solid wood components, including chair legs, table legs, frames and shaped furniture parts.
What processes are included?
The listed process includes automatic feeding, conveying, coarse and fine sanding, edge sanding and brush finishing.
Does the line sand edges as well as faces?
Yes. The process flow includes an edge sander for sanding the four edges, alongside left/right and top/bottom sanding steps.
How should this line be selected?
Compare the required finish sequence for the workpiece with the published process flow and equipment list.
